EMR4 Truck Installation Installation Procedures - Fuel Oil Truck Application

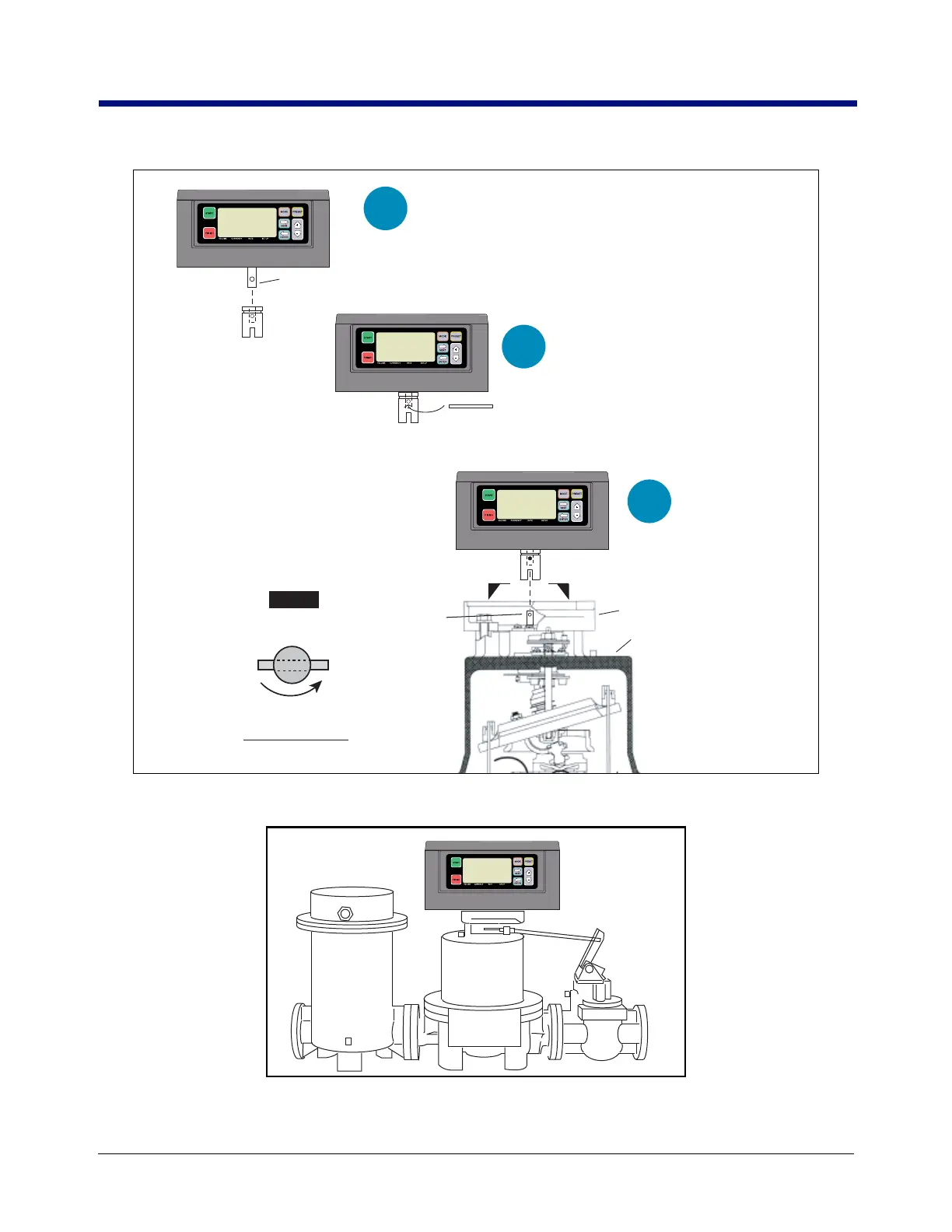

Figure 5. Display Head Mounted On TCS 682 Piston Meter
Figure 6. Completed TCS 682 Piston Meter Installation
TCS Adapter
Encoder Shaft
TCS Shaft
Top of TCS meter housing
Pin P/N 510105-177
Insert pin through
coupling and shaft
Coupling
P/N 065004-005
1
2
3
Top of TCS vertical
drive shaft
Preferred Rotation
AA
VIEW A-A
NOTICE
758 6
