Veeder-Root EMR4 Application Guide

13
EMR
3
- Truck Installations
EMR4 Truck Installation Installation Procedures - Fuel Oil Truck Application

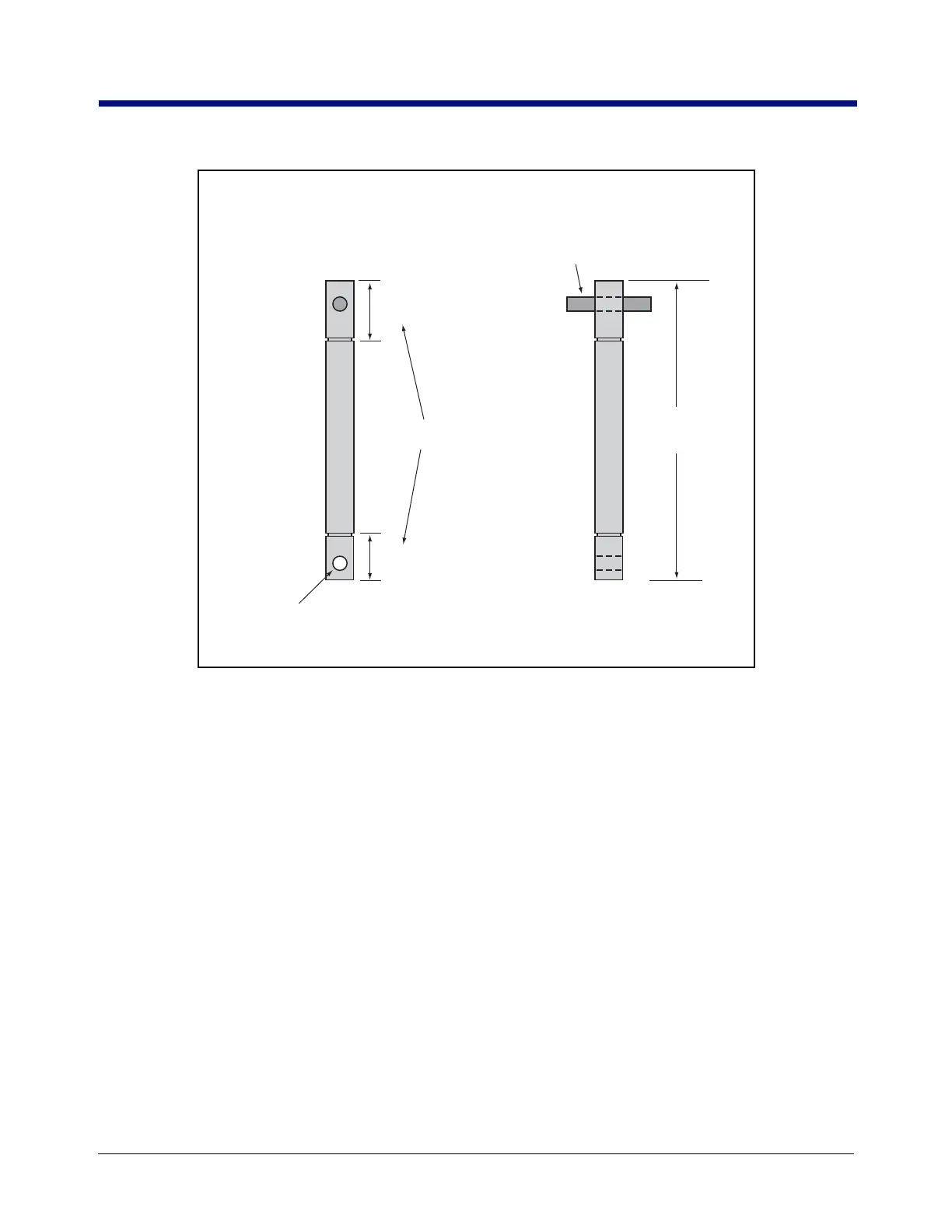

Figure 8. Adapter Shaft Group And Groove Pin For Tokheim, Daniels, & Donovan
0.51" (12.96 mm)
Groove Pin
(VR#510105-140)-
Factory Installed in
"Top" end of shaft
0.39" ( 9.91 mm)
NOTE DIFFERENCE!
"TOP" End of Shaft Group
(VR#331431-001)
0.126 - 0.128" diameter
through-hole (both ends)
2.615"
(66.42 mm)
758-8.eps
