Veeder-Root EMR4 Application Guide

18
EMR
3
- Truck Installations
EMR4 Truck Installation Installation Procedures - Fuel Oil Truck Application

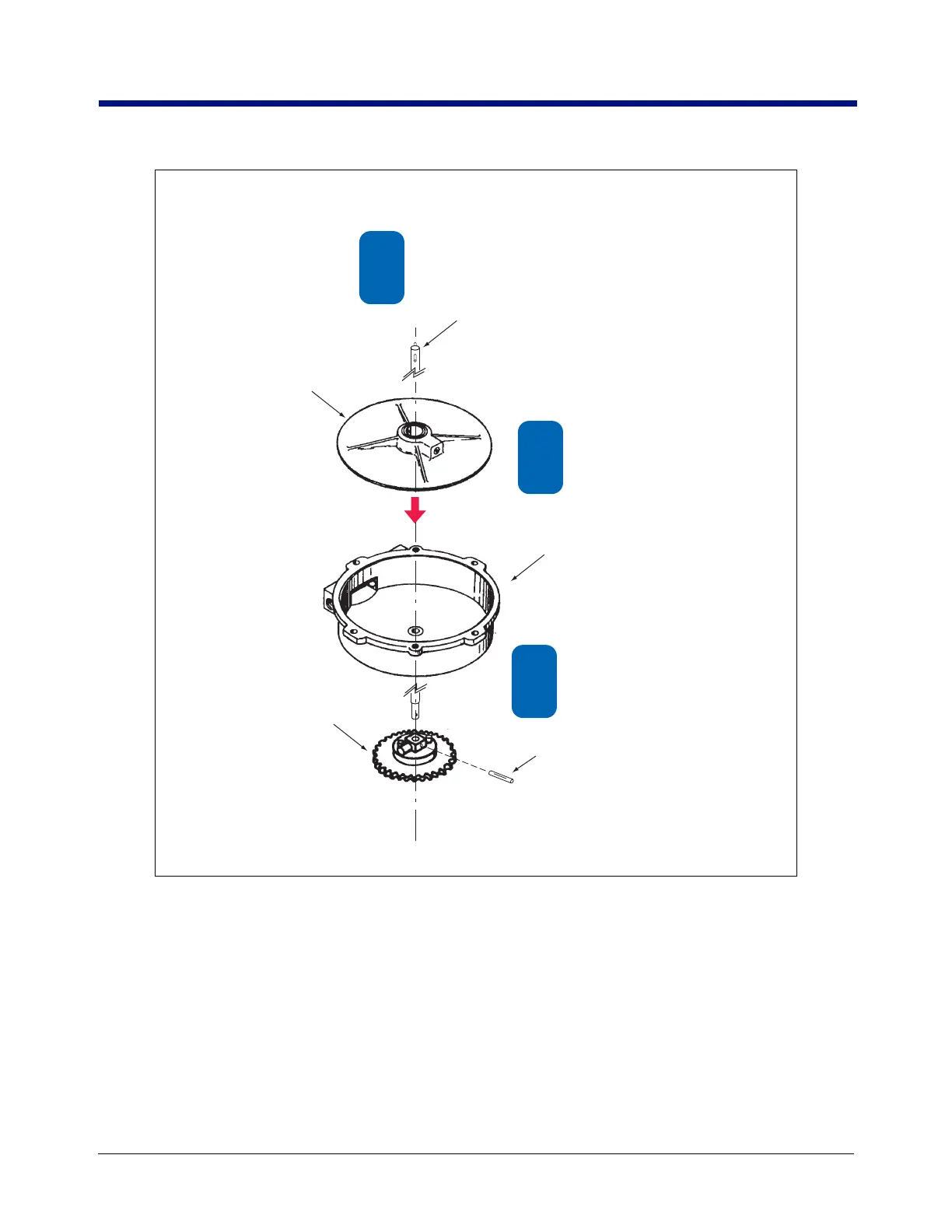

Figure 13. Reassembling The Smith Meter Calibrator
1
2
3
510114-001 Groove Pin
Smith drive gear
758-13.eps
Calibrator case
Calibrator cover
Shaft Group 331433-00X
("Top" end with factory
installed groove pin)
After removing parts
inside calibrator, replace
cover.
Lower Group Shaft down through
bushings in cover and and in calibrator
case and into bore in Smith drive gear.
Support shaft with block
of wood and drive groove
pin through holes in gear
bore and hole in shaft.
