4.2.3.1 VeloView Operation
1. Power-up the sensor.
2. Start the VeloView application.
3. Click on File->Open and select Sensor Stream ( Figure 4-4 below ).

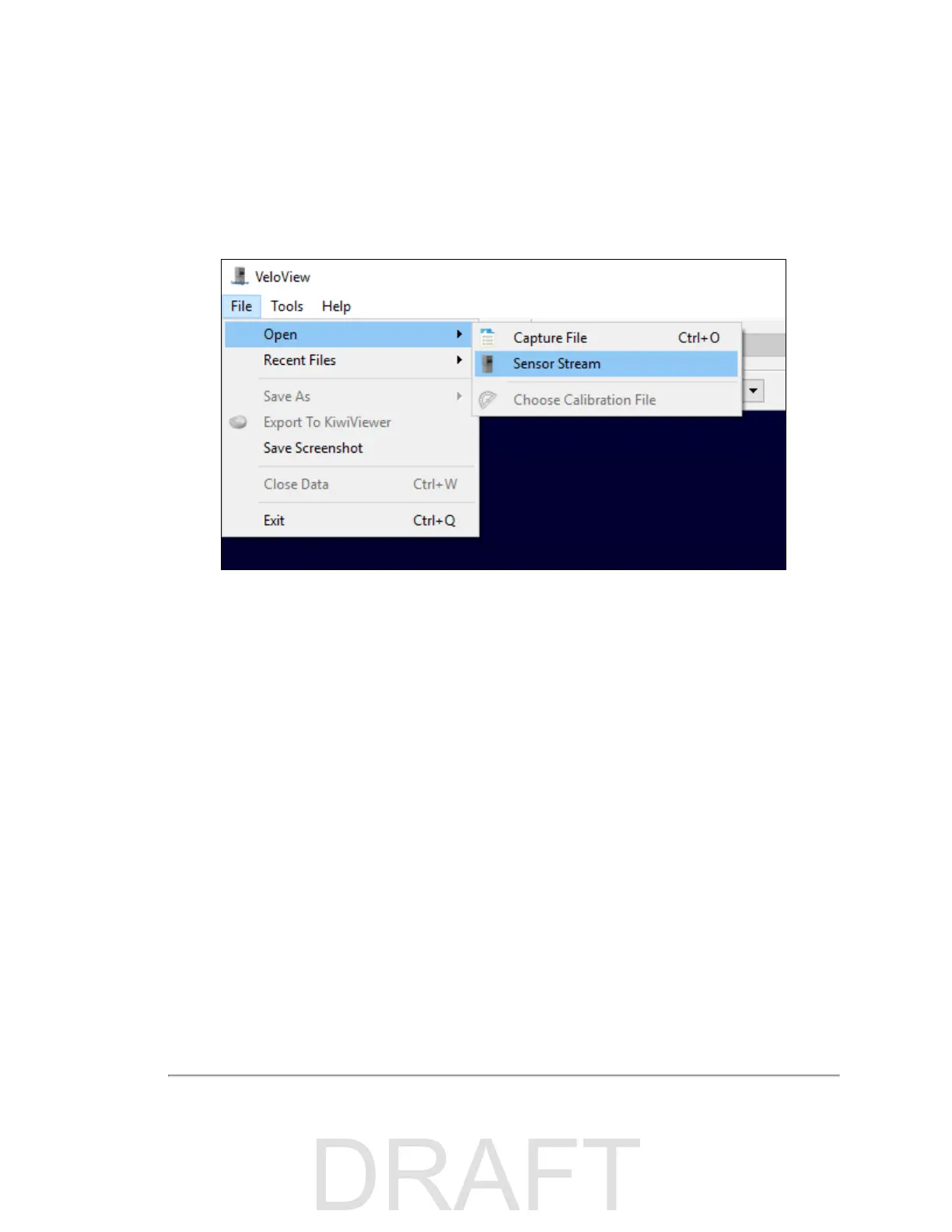

Figure 4-4 VeloView Open Sensor Stream
4. The Sensor Configuration dialog will appear ( Chapter 4 • on page 22 ). Select the correct sensor type then click
OK.
5. VeloView begins displaying the sensor data stream. See Unboxing & Verification on page 22 .
Above is an example of a VeloView screen in an office, workbench or lab scenario.
