Function Description
Laser State See description in
Table 10-1 on page 68
.
10.1.3 Info Screen

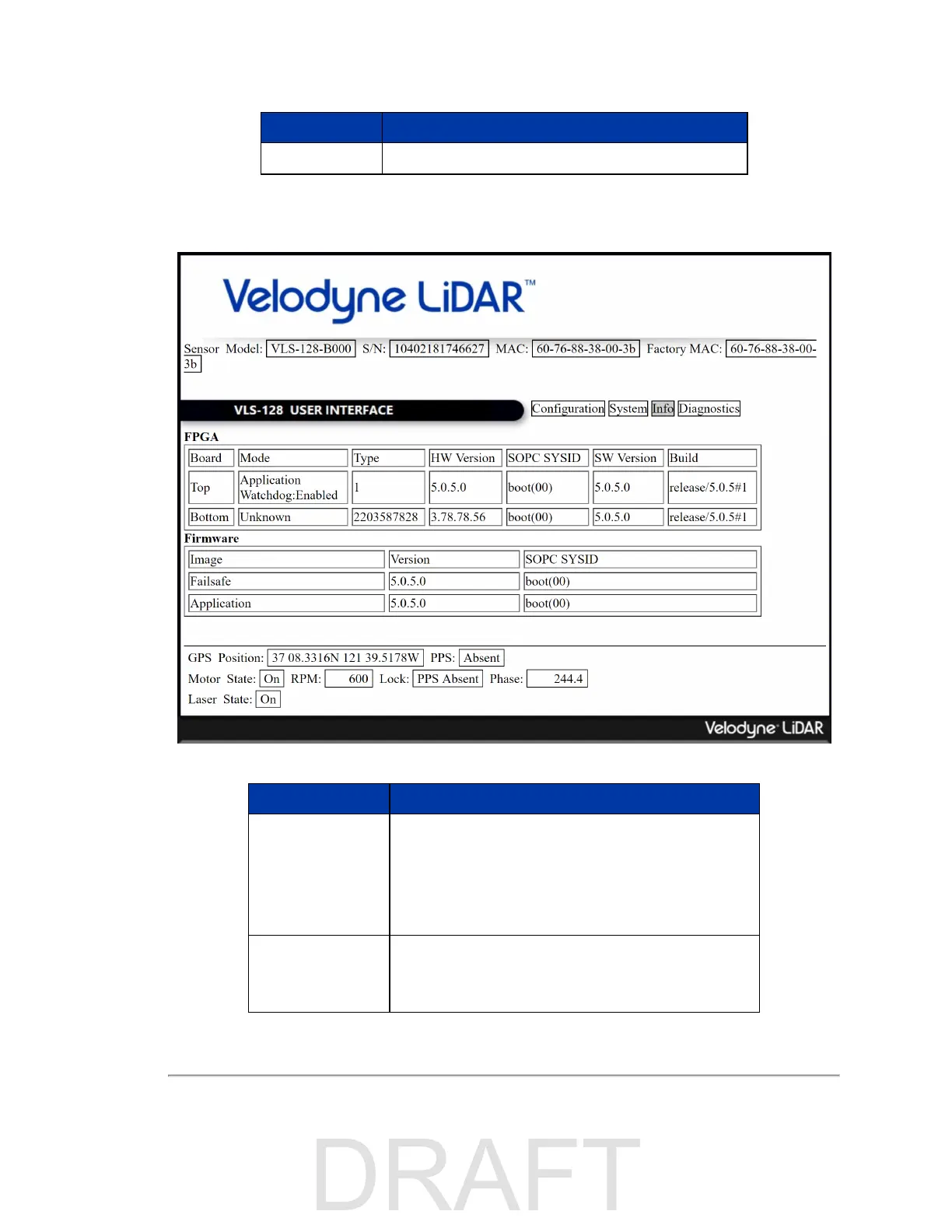

Figure 10-3 VLS-128 Info Screen
Function Description
FPGA (top board)
Board — Top or Bottom board information.
Mode — State of the Application Watchdog – Velodyne use only.
Type — Velodyne Use Only.
HW Version — Velodyne Use Only.
SOPC SYSID — Velodyne Use Only.
SW Version — Current operating firmware version.
Build — Velodyne Use Only.
FPGA (bottom board)
Board — Top or Bottom board information.
Mode – Velodyne use only.
Type — Velodyne Use Only.
HW Version — Velodyne Use Only.
Table 10-3 Info Screen Functionality and Features
