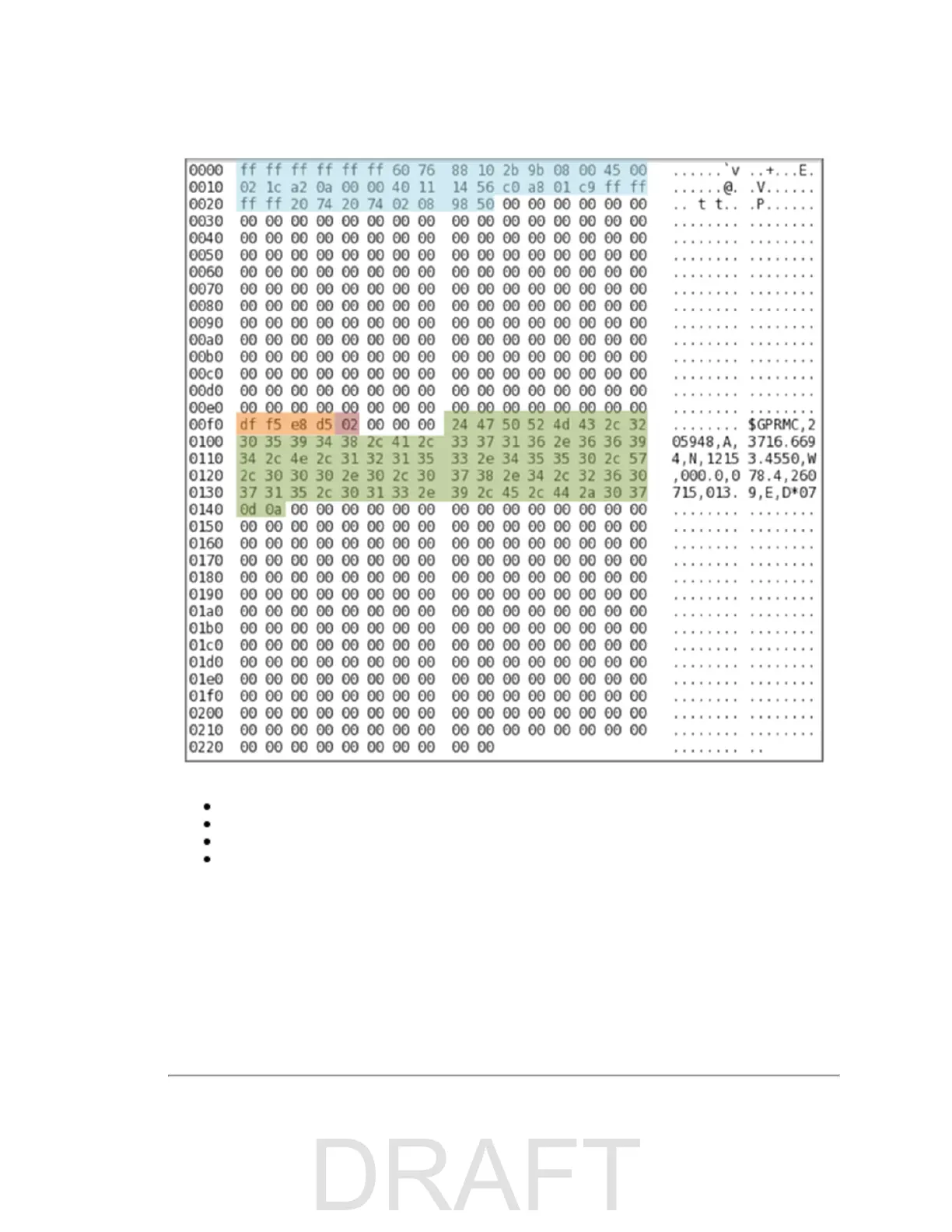

Figure 9-4 Wireshark Position Packet Trace

Legend:

light blue: Ethernet+IP+UDP packet header (42 bytes)

orange: Timestamp (4 bytes)

red: PPS status (1 byte)

green: NMEA GPRMC sentence (length varies)

9.4 Discreet Point Timing Calculation

For the purpose of geo-referencing LiDAR data, it is helpful to calculate the exact moment of a particular laser firing in

order to more closely associate it with time stamped data from an INS. By using the firing timing information given in

Figure

9-5 on the facing page

you are able to compute the exact firing time for each data point.

60 VLS-128 User Manual
