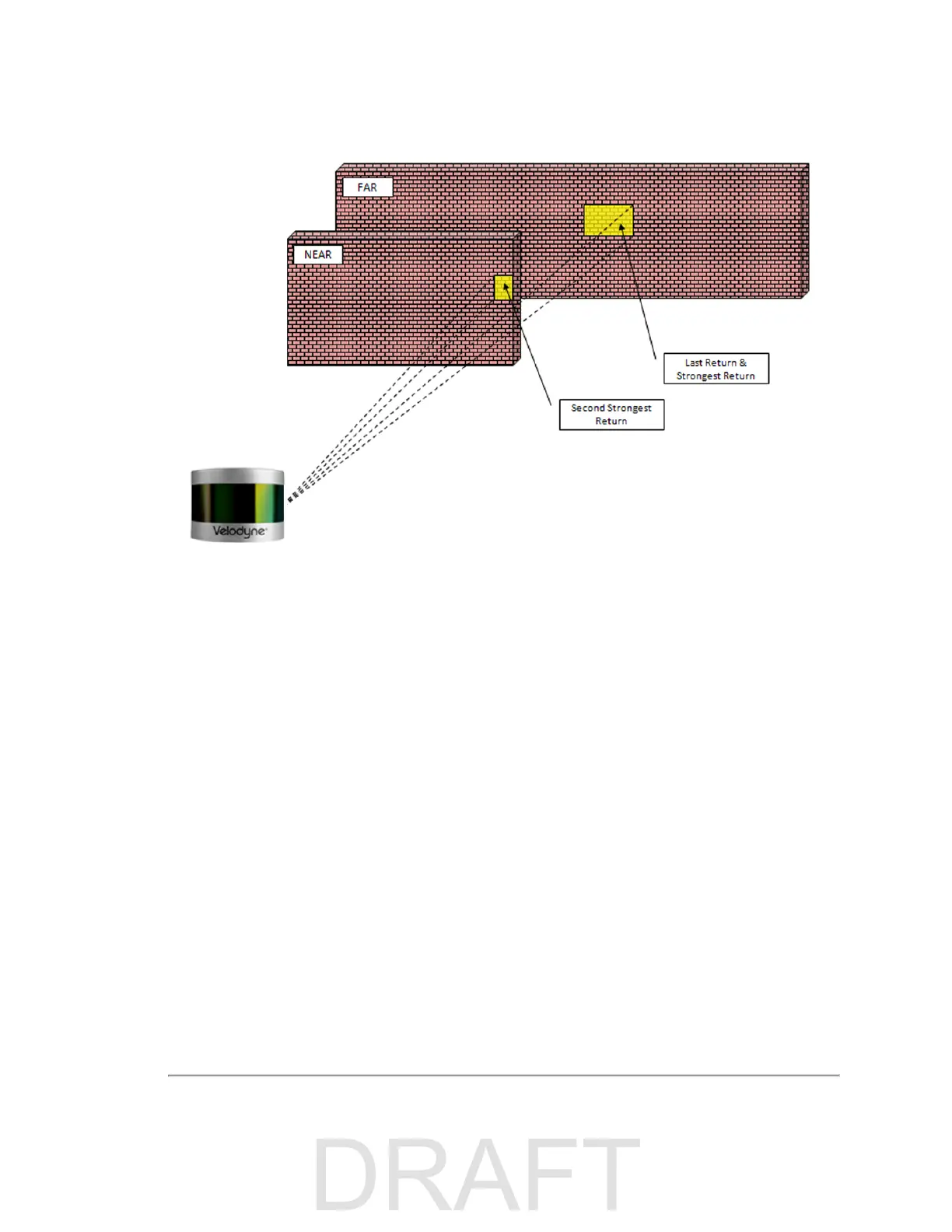

Figure 6-3 Dual Return with Second Strongest Return

It's also possible that a small portion of the beam clips a retro-reflector and returns more energy than the majority of the

beam, as in

Figure 6-4 on the facing page

34 VLS-128 User Manual

DRAFT
