Vertiv Avocent User Manual

NOTE: Creation of service definitions is necessary for granularity but not required for all types of NATand firewall
rules.

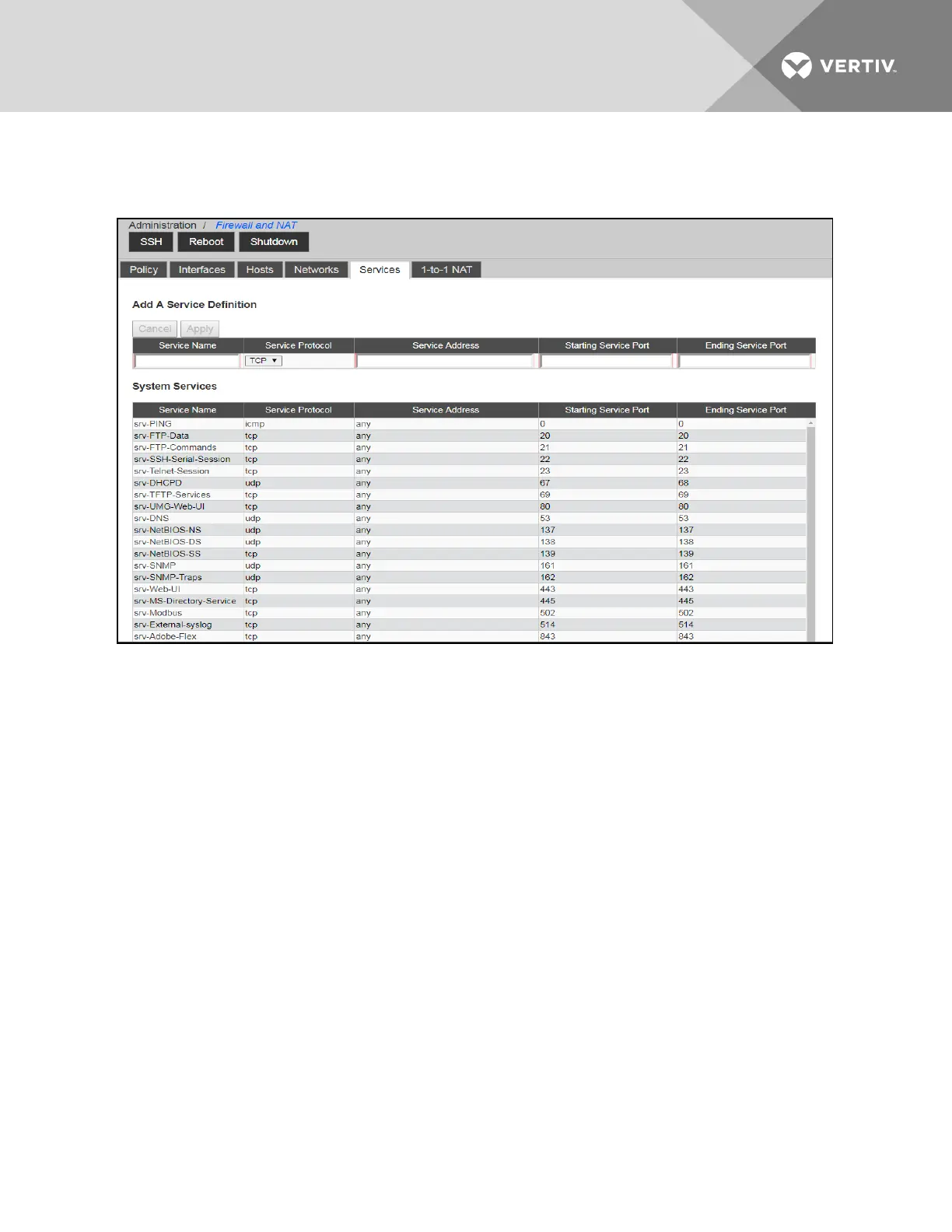

Figure 6.6 Services Tab
To create a service definition:
1. From the sidebar, click Firewall and NAT, then click the Services tab.
2. In the Service Name field, enter a name to be used for the service.
NOTE: Aservice name can be between 3-40 alphanumeric characters.
3. In the ServiceAddress field, enter a valid subnet IDfor the service in CIDRformat. For example, 192.168.10.0/24.
4. Enter the starting and ending ports for the IPprotocol.
NOTE: Valid entries are from 0-65,535.
5. Click Apply. The new service definition will be displayed in the user-defined service definition table.
To modify or delete a user-defined service definition:
1. From the sidebar, click Firewall - NAT, then click the Services tab.
2. In the User Defined Services table, check the box next to the service you want to modify or delete.
3. Make your changes and click Apply.
-or-
Click Delete to delete the service definition.
6.5.5 Policy
An administrator can control the flow of IPtraffic in, out and through the appliance with a NAT and/or firewallpolicy.
An administrator can create policies that will allow an external host or server to communicate directly with IPdevices
(hosts)that are securely connected to the private ports of the appliance. ANATor forward policy will allow traffic to bypass
Vertiv | Avocent® Universal Management Gateway Appliance Installer/User Guide | 77

Vertiv Avocent Specifications

General

Ports	4
Network Interfaces	2 x 10/100/1000Base-T Ethernet
Management	Web-based, CLI
Remote Access	IP
Authentication	Local, LDAP, RADIUS, TACACS+
Encryption	AES
Operating Temperature	32 to 104°F (0 to 40°C)
