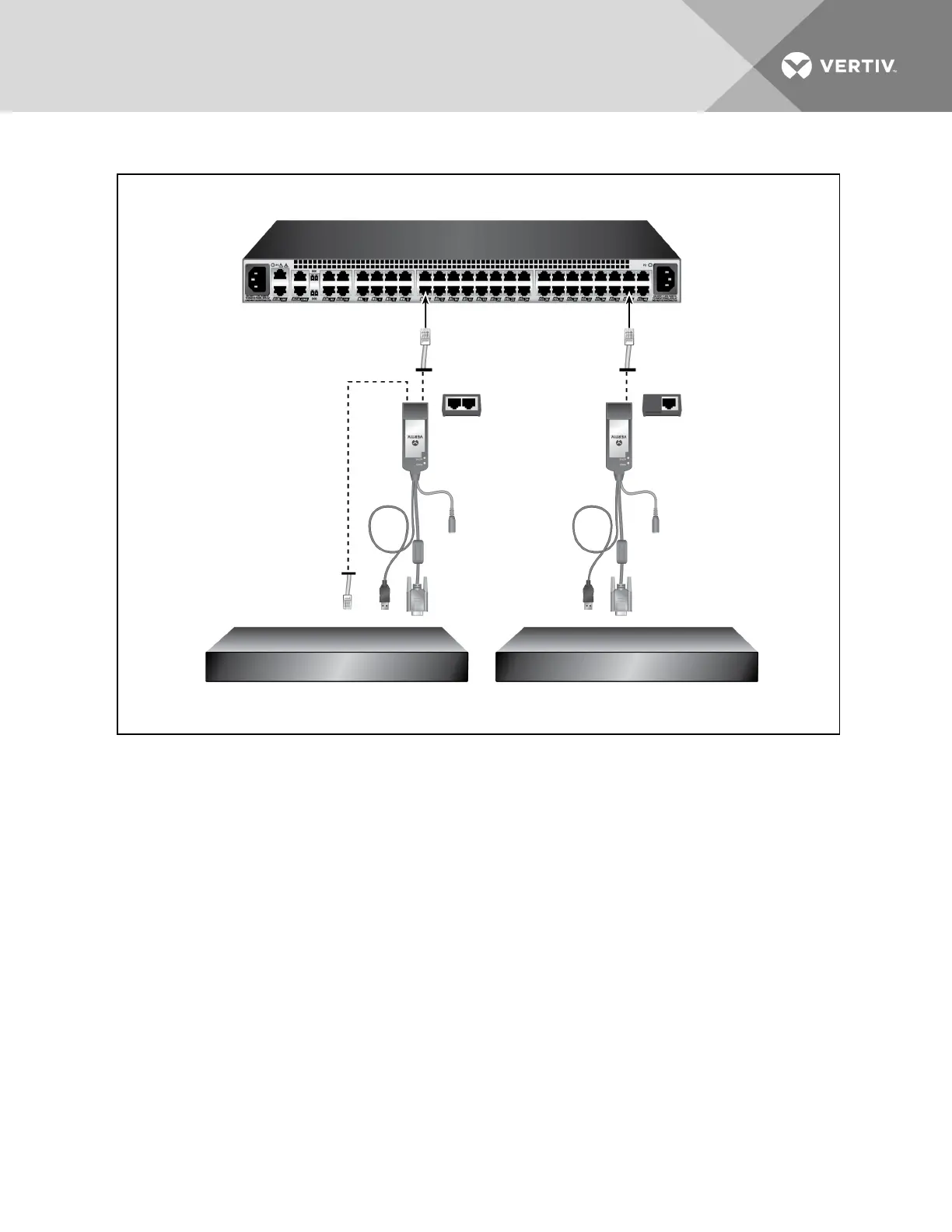

Figure 2.4 UMIQModule Configuration
The UMIQ-v1 module has a single RJ45 port to connect to the appliance. The UMIQ-v2 module has two RJ45 ports. You can
connect either one to the appliance and the other to a dedicated service processor port on the server. The cable length can
be up to 100 meters long.
See KVM management on page 53 for more information about KVMtargets.
2.4 Turning On the Appliance
The appliance is supplied with dual power supplies.
To turn on the appliance:
1. Plug the power cables into the appliance and into a power source.
2. Turn on the connected devices.
2.5 Verifying the Connections
2.5.1 Front and rear panel power status LEDs
The front panel of appliance has a dual-color general status LED that may illuminate:
• The LED illuminates green when the appliance is turned on and operating normally.
• The LED blinks green when the appliance is booting.
• The LED illuminates amber if a fault condition occurs, such as power supply failure, elevated ambient
temperature or fan failure. The LED will continue to illuminate amber as long as the failure persists.
Vertiv | Avocent® Universal Management Gateway Appliance Installer/User Guide | 9

Vertiv Avocent Specifications

General

Ports	4
Network Interfaces	2 x 10/100/1000Base-T Ethernet
Management	Web-based, CLI
Remote Access	IP
Authentication	Local, LDAP, RADIUS, TACACS+
Encryption	AES
Operating Temperature	32 to 104°F (0 to 40°C)
