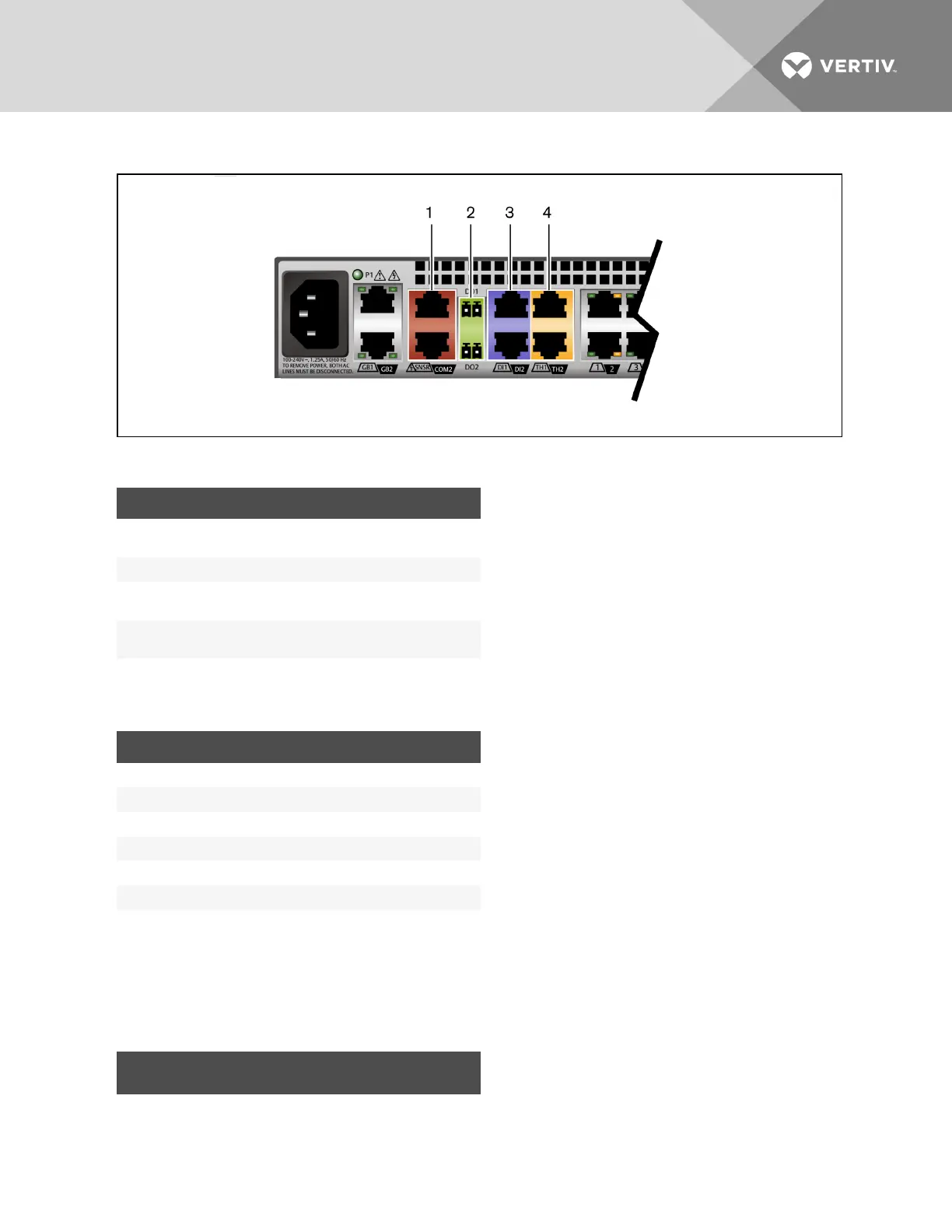

Figure 5.7 Sensor Ports
ITEM NAME TYPE
1
SNSR/COM2
(RS485)
Temperature, Humidity and Water
2 DO2 (Digital Output) Buzzer, Beacon and Door Lock
3 DI1/DI2 (Digital Input)
Vibration, Smoke, Leak, Door and
Motion
4 TH1/TH2 (1-Wire)
Temperature, Humidity and Dry
Contacts
Table 5.14 Sensor Ports
The following table displays the data that can be collected.
MEASUREMENT UNITS
Temperature Celsius/Fahrenheit
Humidity % RH
Door Status Active/Inactive
Leak Status Active/Inactive
Motion Status Active/Inactive
Vibration Status Active/Inactive
Smoke Status Active/Inactive
Table 5.15 Environmental Measurements
5.12.1 Com Digital Input
The COM digital input (DI) sensors view and monitor motion and smoke. They can be connected to the DI1/DI2 ports on the
back of the appliance.
PROPERTY DESCRIPTION
DEFAULT
VALUE
Sensor # Sensor ID (Read Only)
System
Defined
Value
Table 5.16 COM Sensor Properties
Vertiv | Avocent® Universal Management Gateway Appliance Installer/User Guide | 62

Vertiv Avocent Specifications

General

Ports	4
Network Interfaces	2 x 10/100/1000Base-T Ethernet
Management	Web-based, CLI
Remote Access	IP
Authentication	Local, LDAP, RADIUS, TACACS+
Encryption	AES
Operating Temperature	32 to 104°F (0 to 40°C)
