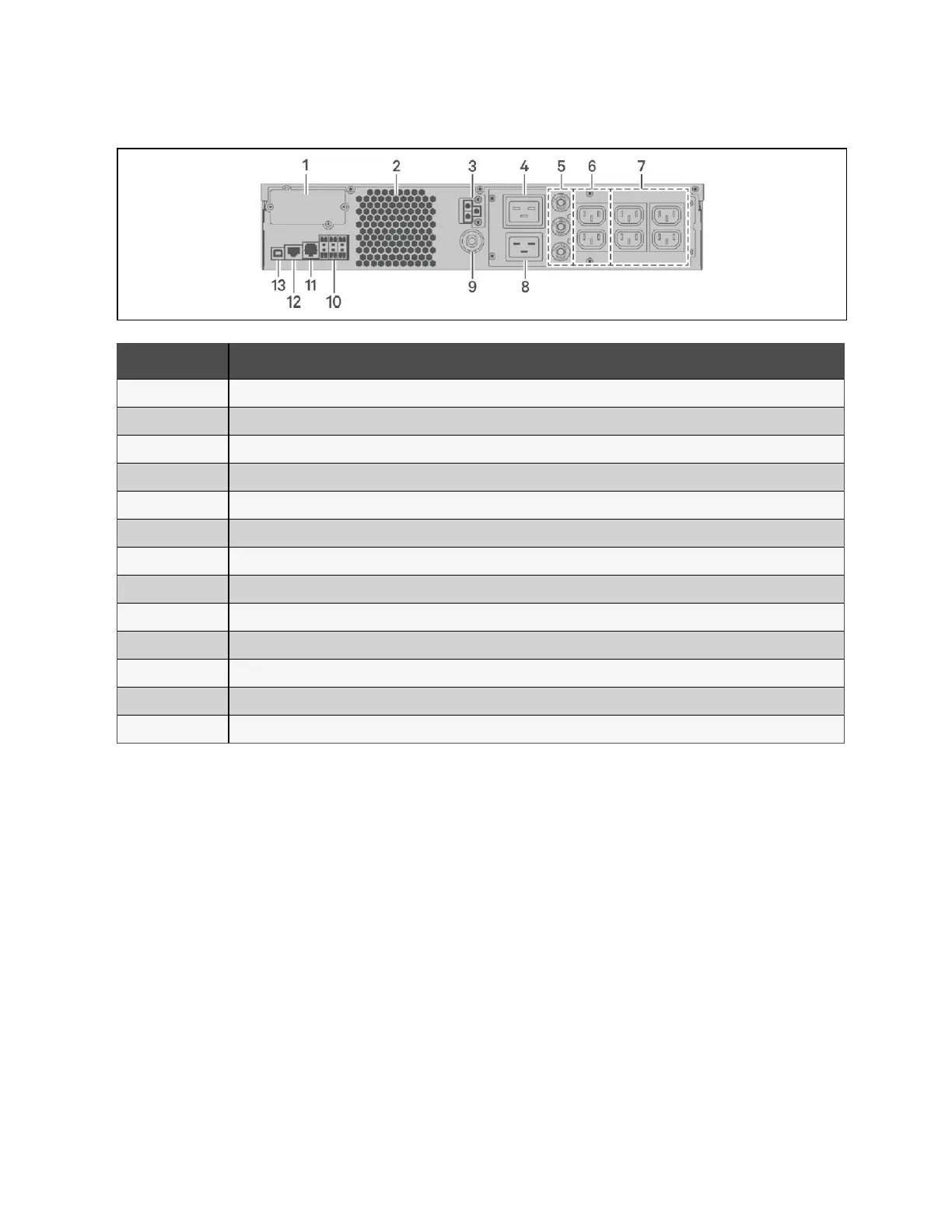

Figure 2.8 GXT5-3000IRT2UXL (XLE) Rear Panel
Item Description
1 Vertiv™ Liebert® IntelliSlot™ port
2 Ventilation Hole
3 EBC connector
4 Non-programmable C19 output receptacle
5 Output circuit-breaker reset buttons, 10 A
6 Non-programmable C13 output receptacles
7 Programmable C13 output receptacles
8 C20 Input-power plug and cable
9 Input circuit-breaker reset button, 20 A
10 Terminal-block/Dry contact communication connectors
11 RS-232 port - RJ-45/RJ-11 connection used for command line interface
12 RS-485 port - RJ-45 connection used for external temperature sensors
13 USB port
