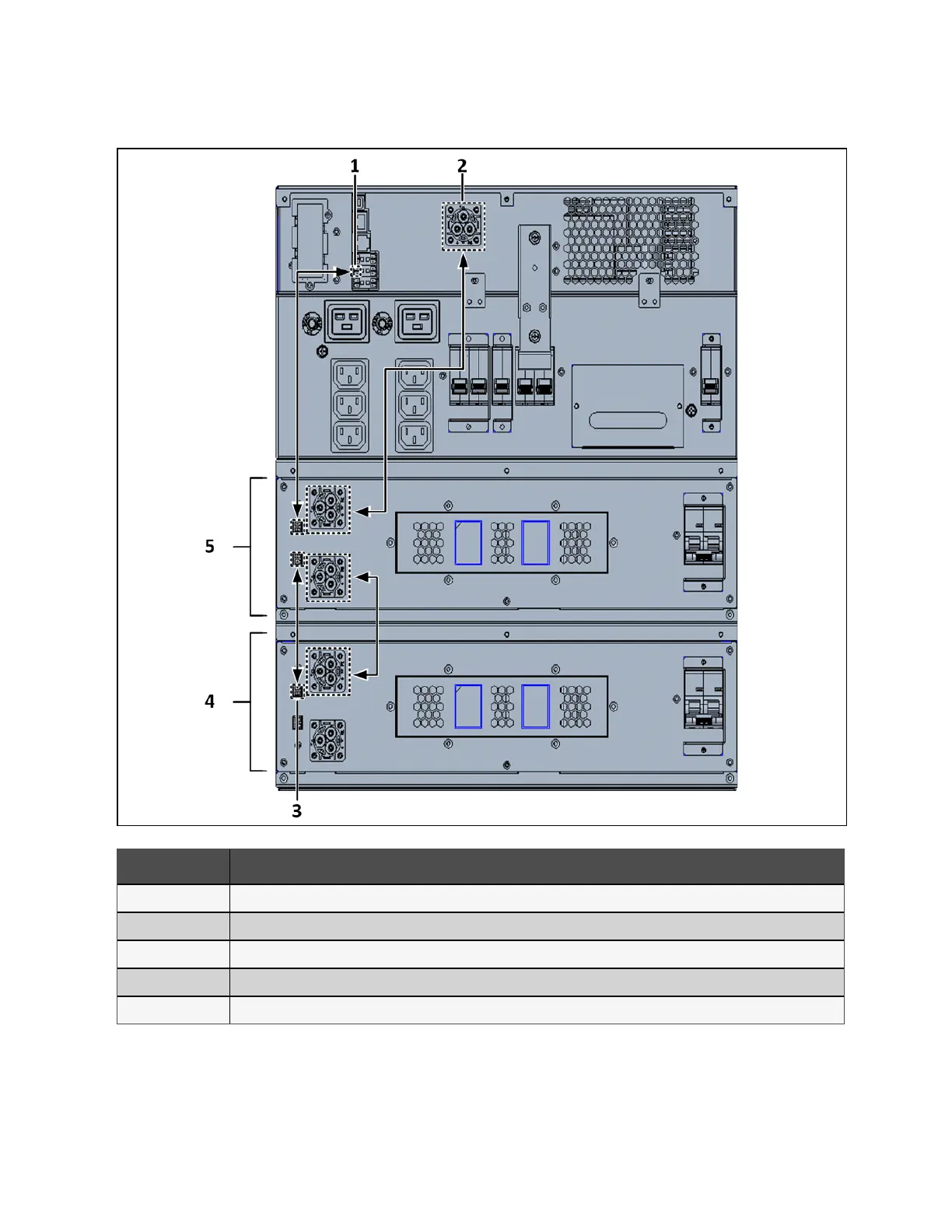

Figure 3.2 Example of EBCs Connected to the 5/6 K UPS
Item Description
1 EBC-detection dry contact port (See Table 3.3 on page39, for details.)
2 EBC connector
3 EBC-detection port
4 External battery cabinet
5 External battery cabinet
