Vertiv Liebert iCOM - 8.2 Communication Setup with Embedded Unity; 8.2.1 Connecting to the BMS

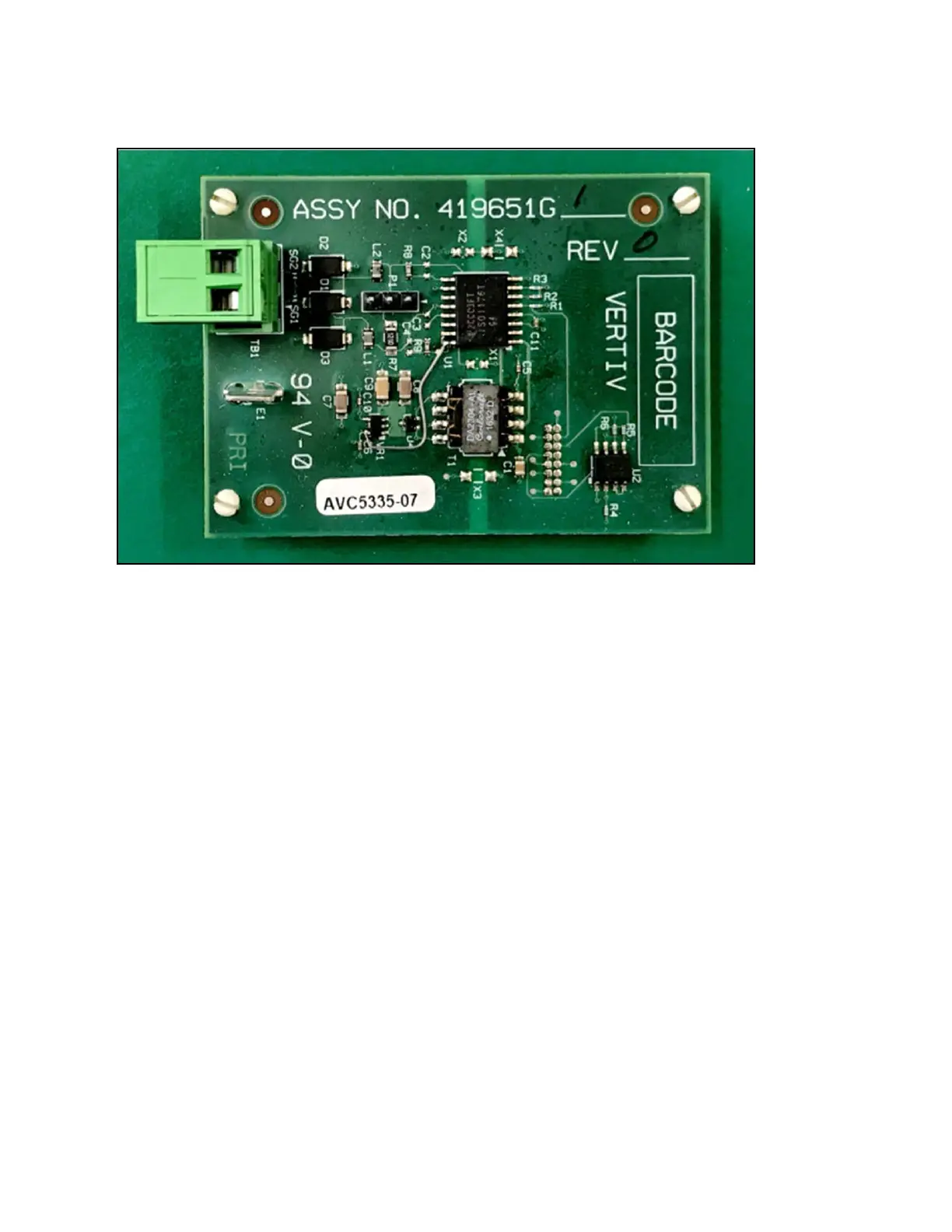

Figure 8.2 Expansion Board
NOTE: The TB1 for RS-485 Terminal Block is used if a Sitelink/Sitescan connection and MODBUS or BACnet MSTP is
required simultaneously.
