Vertiv | Liebert PEX+ Chilled Water | User Manual 15
Installation
• Removal of Wood Packaging

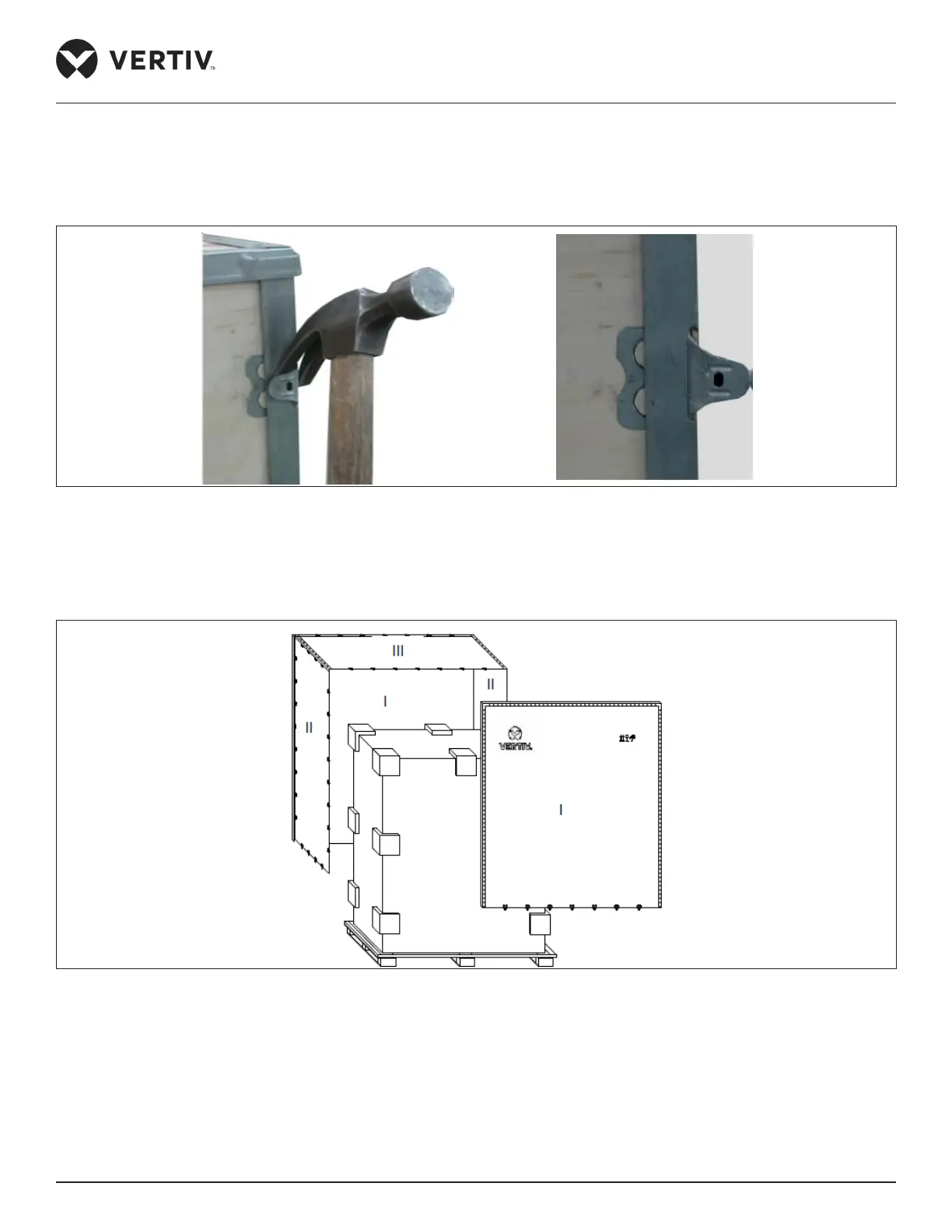

Use a claw hammer or straight screwdriver to straighten the connection hook that holds the side panels to the
top cover, as shown in Figure 2-4.
Figure 2-4 Straightening the Hook
Firstly, straighten all the hooks that hold side panel-I and remove side panel-I. Then straighten all the hooks that
hold side panel-II and remove side panel-II. At last remove top cover-III, as shown in Figure 2-5.
Figure 2-5 Removing Side Panel and Top Cover
• Remove the Base Pallet
The unit is fixed onto the base pallet with M8×70 screw, as shown in Figure 2-6. Use a 17 mm open-end spanner,
ratchet spanner or sleeve to remove the fixing bolts.
