n At stop function, the counter continues counting with the last
recent counter value after gate restart.
How the CPU should react at opening of the SW gate may be set with
the parameter Gate function. The usage of the HW gate may be
determined by the parameter Hardware gate.

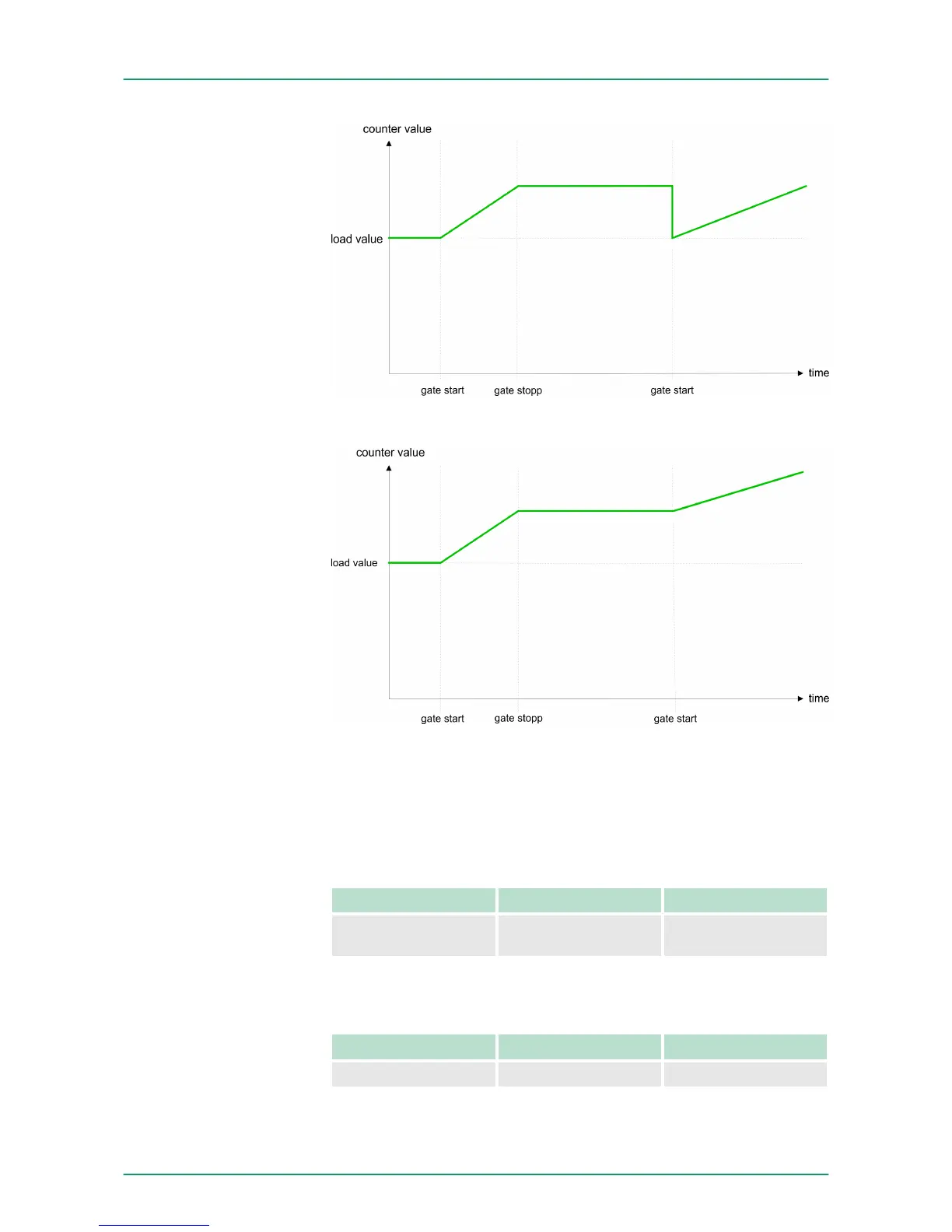

Gate control via SW gate, canceling (HW gate deactivated, gate
function: Cancel count)
SW gate HW gate Reaction Counter
edge 0-1 deactivated Restart with load
value
Gate control via SW gate, stopping (HW gate deactivated, gate
function: Stop count)
SW gate HW gate Reaction Counter
edge 0-1 deactivated Continue
Gate control abort,
interruption
VIPA System 300S Deployment I/O periphery
Counter > Counter - Additional functions
