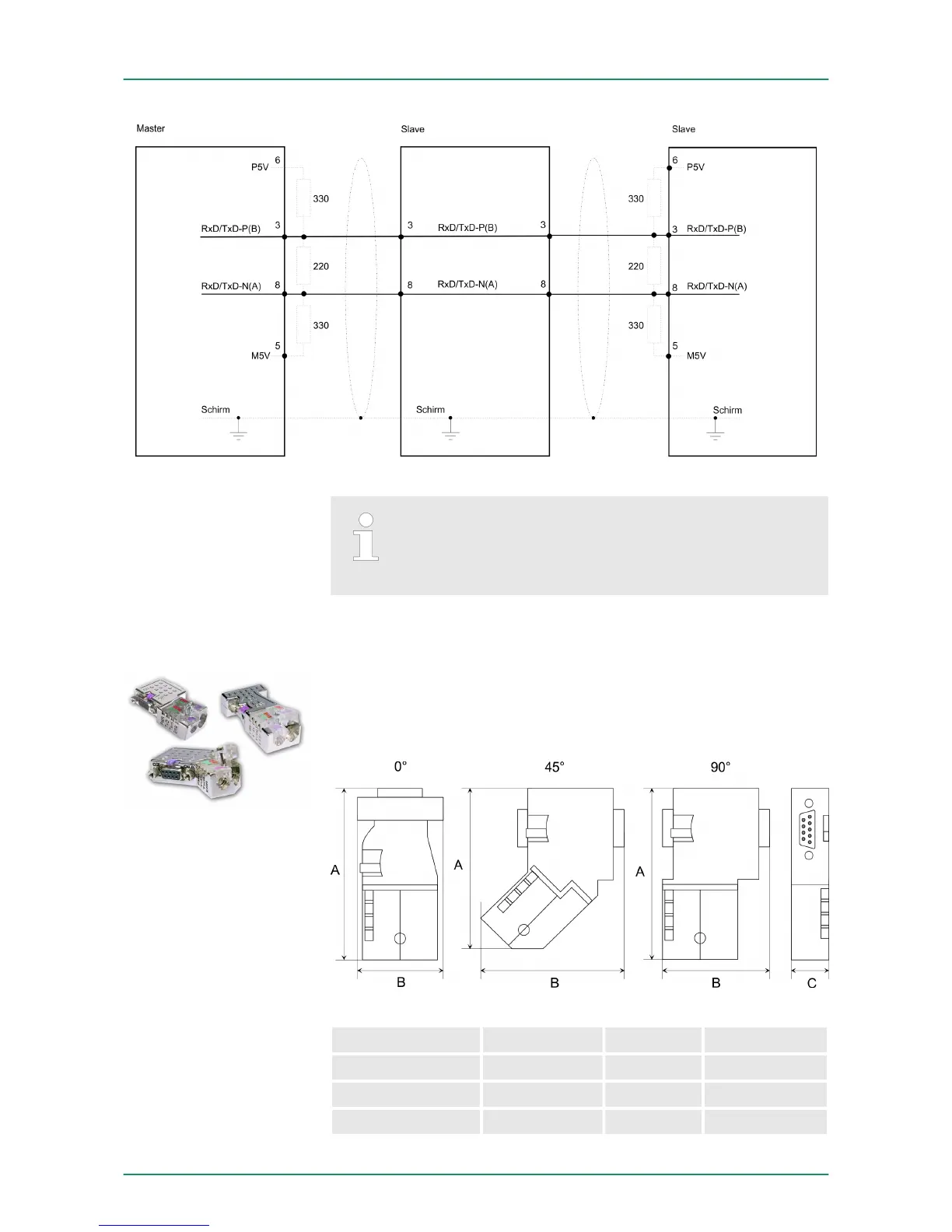

The PROFIBUS line has to be terminated with its ripple
resistor. Please make sure to terminate the last partici-
pants on the bus at both ends by activating the terminating
resistor.
In PROFIBUS all participants are wired parallel. For that purpose, the
bus cable must be feed-through. Via the order number 972-0DP10
you may order the bus connector "EasyConn". This is a bus con-
nector with switchable terminating resistor and integrated bus diag-
nostic.
Dimensions in mm 0° 45° 90°
A 64 61 66
B 34 53 40
C 15.8 15.8 15.8
EasyConn bus con-
nector
VIPA System 300SDeployment PROFIBUS communication
PROFIBUS installation guidelines
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 182
