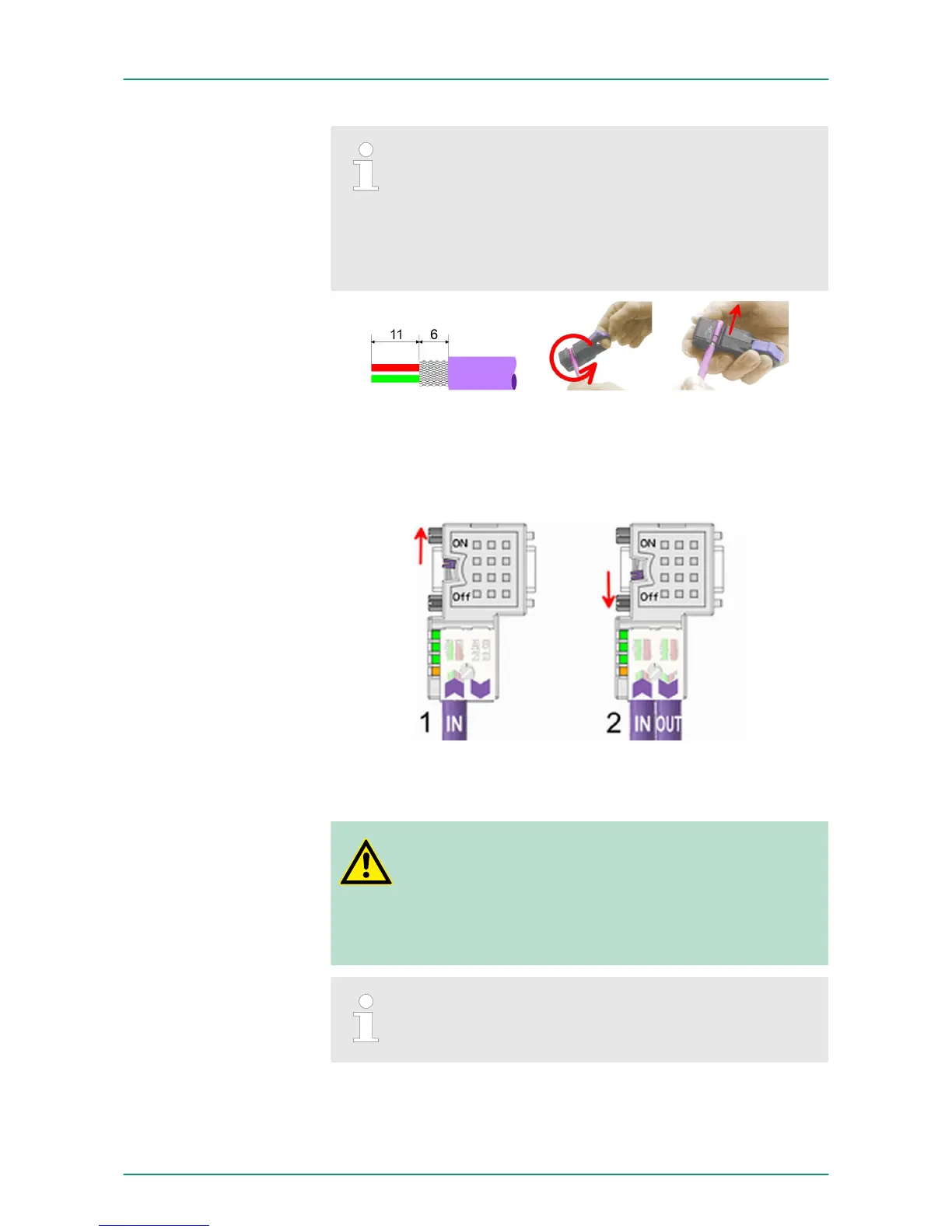

To connect this EasyConn plug, please use the standard
PROFIBUS cable type A (EN50170). Starting with release
5 you also can use highly flexible bus cable:
Lapp Kabel order no: 2170222, 2170822, 2170322.
With the order no. 905-6AA00 VIPA offers the "EasyStrip"
de-isolating tool that makes the connection of the Easy-
Conn much easier.
Dimensions in mm
The "EasyConn" bus connector is provided with a switch that is used
to activate a terminating resistor.
[1] 1./last bus participant
[2] further participants
CAUTION!
The terminating resistor is only effective, if the connector is
installed at a bus participant and the bus participant is con-
nected to a power supply.
The tightening torque of the screws to fix the connector to
a device must not exceed 0.02Nm!
A complete description of installation and deployment of
the terminating resistors is delivered with the connector.
Termination with "Easy-
Conn"
Wiring
VIPA System 300S Deployment PROFIBUS communication
PROFIBUS installation guidelines
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 183
