76ENGINECOMPONENTANDLOCATION

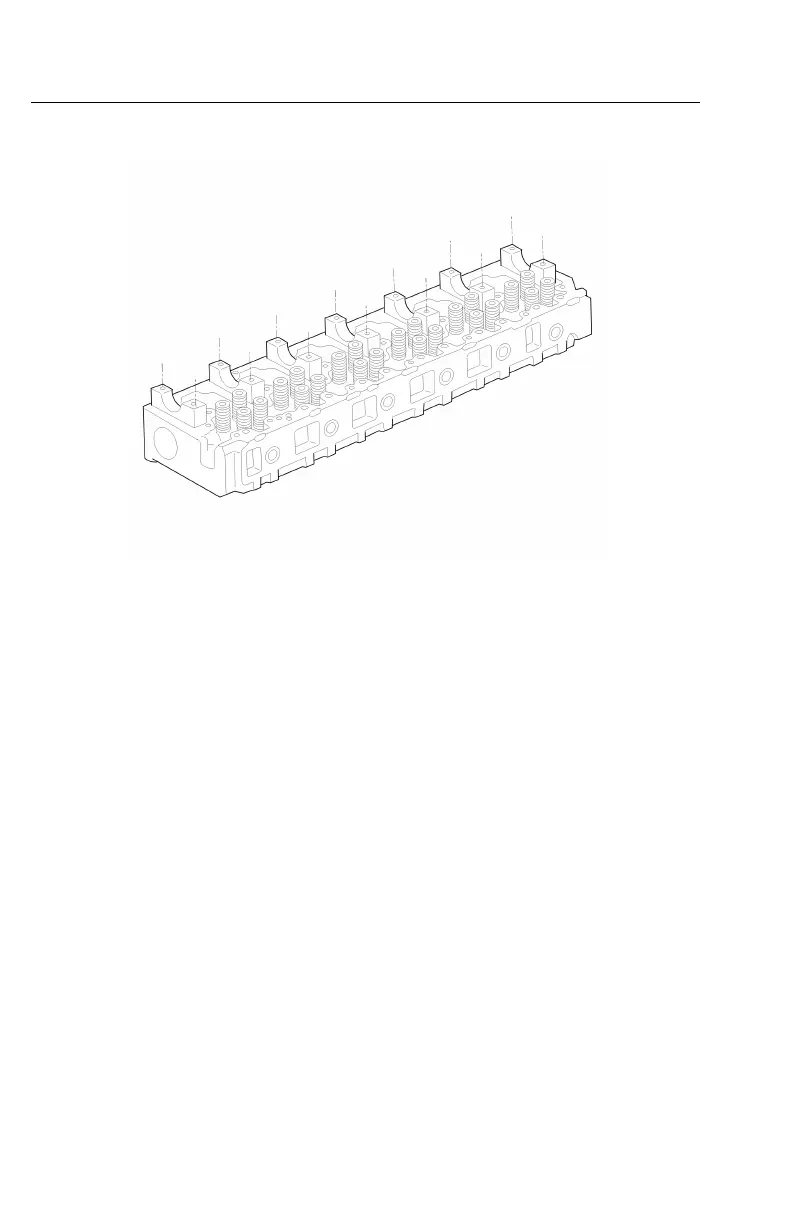

CylinderHead

W2033297

Mainfeaturesofthecylinderheadare:

•One-piececastiron

•Integralthermostathousing

Separatechambersforexhaustandinletateachcylindermakethisa"crossow"

design.Thefuelchannel,drilledfromfronttorear,connectswithgroovesmachined

aroundeachinjectoropening.Aplugattherearofthecylinderheadsealsthischannel.
