121

18. Drawings and legends

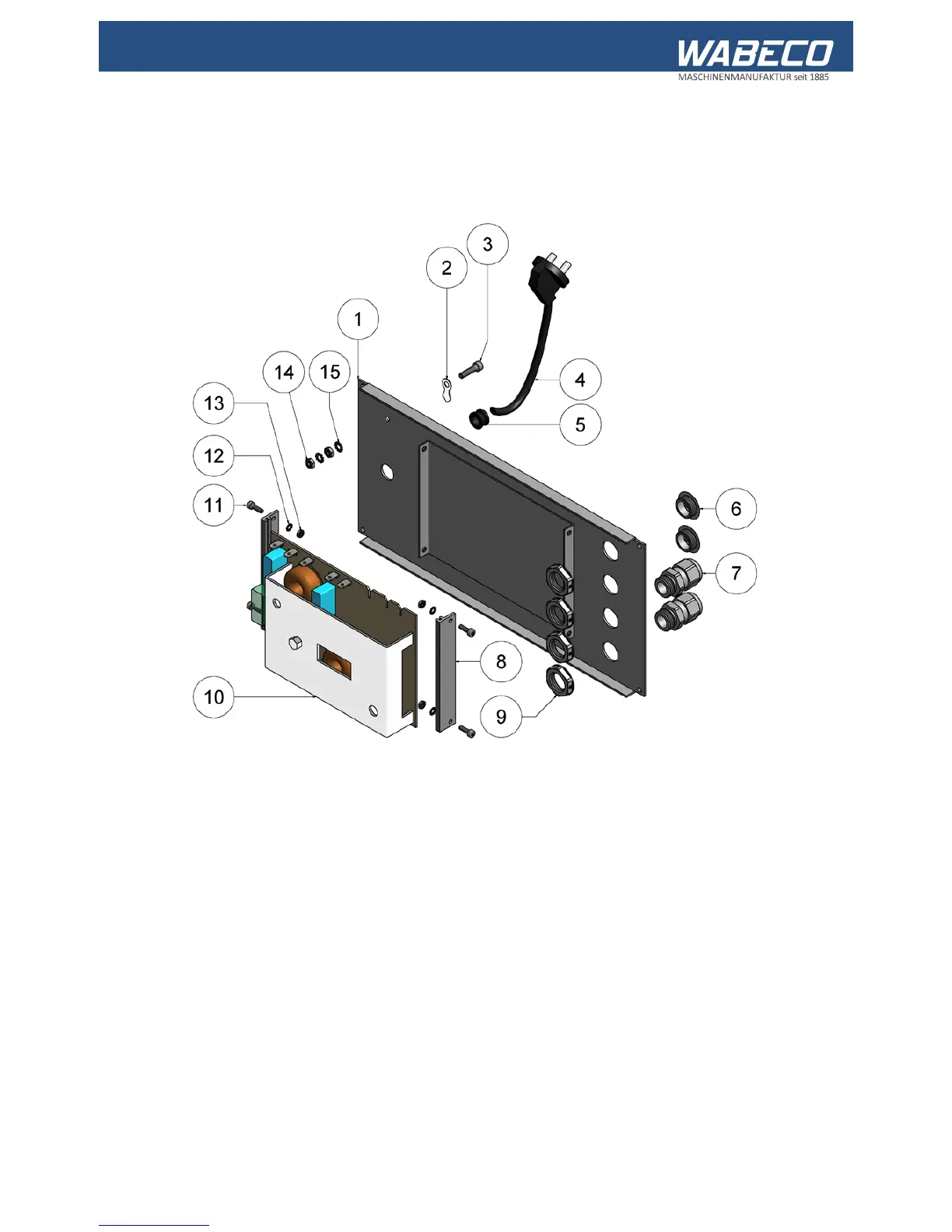

18.24 Industrial screen and membrane keyboard specifically for 1.4 kW motor

Part No. Items Order No. Description

1 1 51401528-0001 Cover

2 1 51501304 Symbol for earthed connection

3 1 16191200004012 Screw

4 1 51500920-0003 Mains cable

5 1 51501531 Strain relief

6 2 51501523 Closure screw

7 2 51501533 Cable screw

8 2 51500401-0001 Guide rails

9 4 51501505 Counter nut

10 1 51501402 Control board

11 4 16191200003010 Screw

12 4 16167980003000 Fanned washer

13 4 16193400003000 Nut

14 2 16193400004000 Nut

15 2 16167980004000 Fanned washer
