17. Operating elements

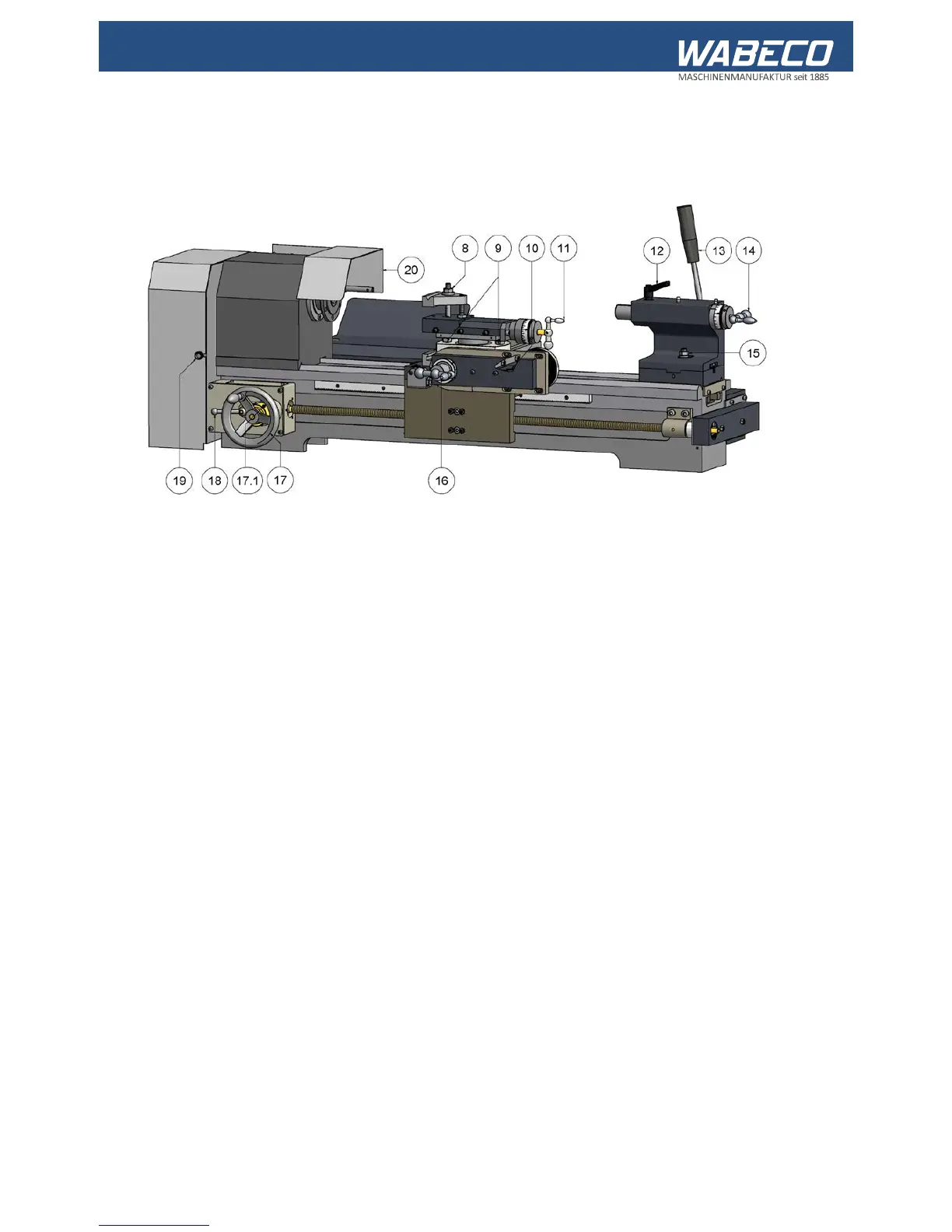

17.14 CC-D6000 lathes with 2.0 kW motor with ball screw spindle
8. Tensioning nut for tool clamping plate
9. Holding screw for longitudinal skid
10. Clamping screw for clamping the tool skid
11. Ball crank for adjusting the longitudinal skid
12. Clamping lever for securing the tailstock sleeve
13. Clamping lever for tailstock quick tensioning
14. Ball crank for adjusting the tailstock sleeve
15. Tensioning nut for securing the tailstock to the guides
16. Ball crank for adjusting the transverse skid
17. Hand wheel for quickly adjusting the tool skid
17.1 Threaded pin for securing the hand wheel in manual mode
18. Switch lever for switching the automatic feed on and off
19. Safety screw for the drive protection hood
20. Chuck protection hood
