17. Operating elements

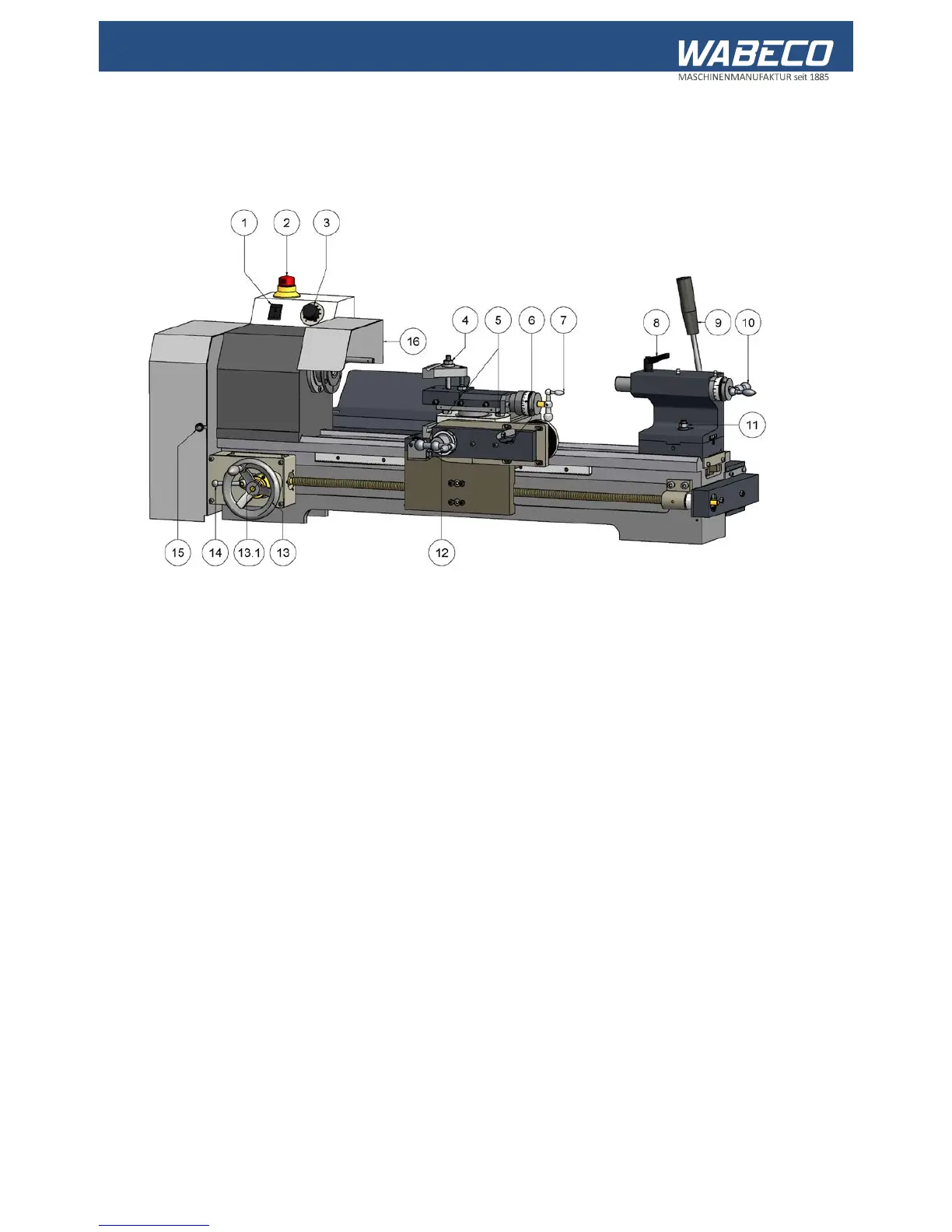

17.8 D6000-C lathes with 2.0 kW motor with ball screw spindle
1. Turn switch for forwards-reverse - main spindle
2. Emergency off switch
3. Potentiometer rotating knob for speed selection of the electrical drive motor
4. Tensioning nut for tool clamping plate
5. Holding screw for longitudinal skid
6. Clamping screw for clamping the tool skid
7. Ball crank for adjusting the longitudinal skid
8. Clamping lever for securing the tailstock sleeve
9. Clamping lever for tailstock quick tensioning
10. Ball crank for adjusting the tailstock sleeve
11. Tensioning nut for securing the tailstock to the guides
12. Ball crank for adjusting the transverse skid
13. Hand wheel for quickly adjusting the tool skid
13.1 Threaded pin for securing the hand wheel in manual mode
14. Switch lever for switching the automatic feed on and off
15. Safety screw for the drive protection hood
16. Chuck protection hood
