18. Drawings and legends

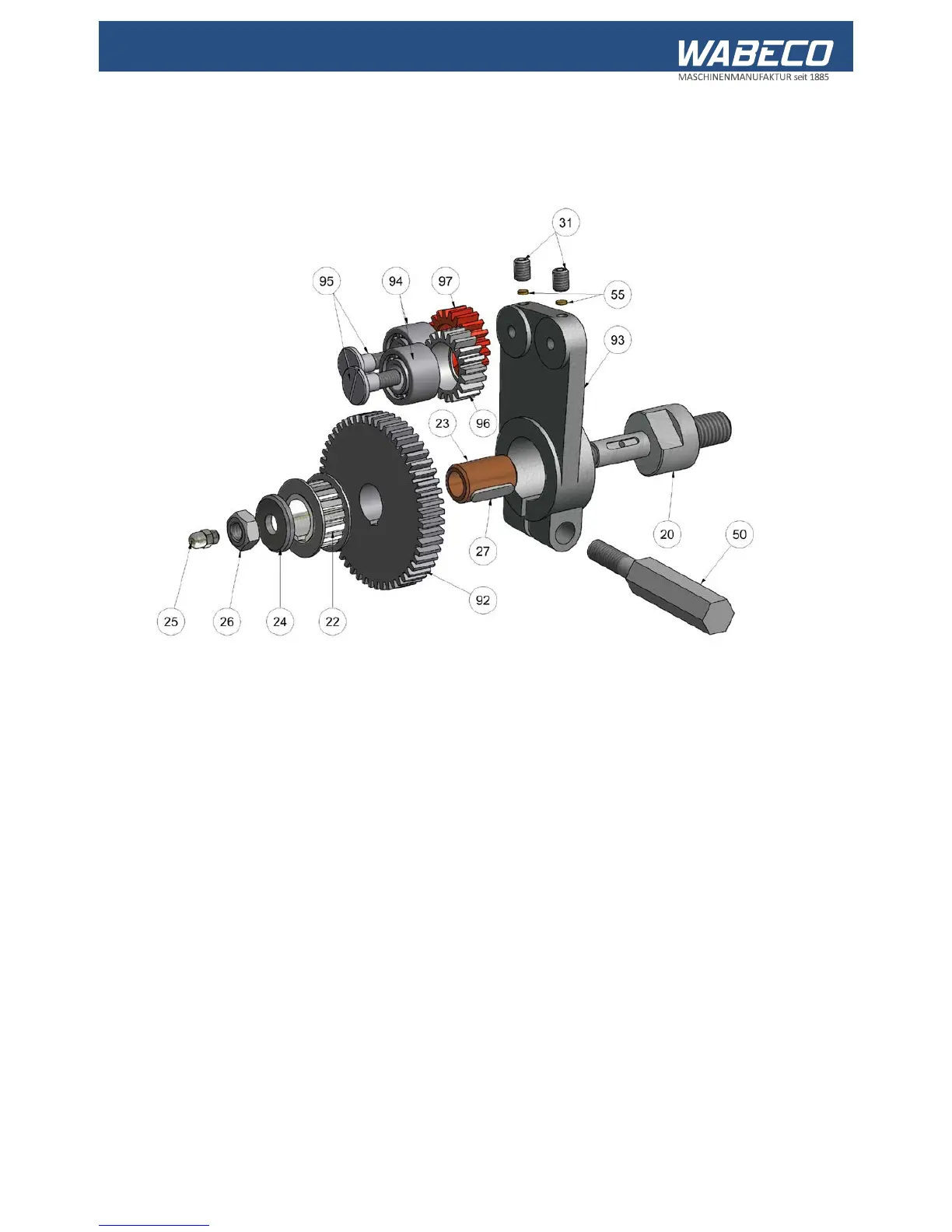

18.9. Headstock – Tumbler gear with ball screw spindle

Part No. Items Order No. Description

20 1 51004025-0033 Bolt

22 1 51006530-00011 Toothed belt wheel Z16

23 1 51007016-0003 Sleeve

24 1 51004020-0010 Washer

25 1 51502518 Lubrication nipple

26 1 16193400008000 Nut

27 1 1606885A050320 Parallel key

31 2 16191300005006 Threaded pin

50 1 10600150 Clamping screw

55 2 51007250-0001 Push piece

92 1 10600192 Toothed wheel

93 1 10600193 Lever

94 2 51502136 Ball bearing

95 2 51004015-0004 Bolt

96 1 10600196 Toothed wheel

97 1 51008530-0002 Toothed wheel, plastic
