18. Drawings and legends

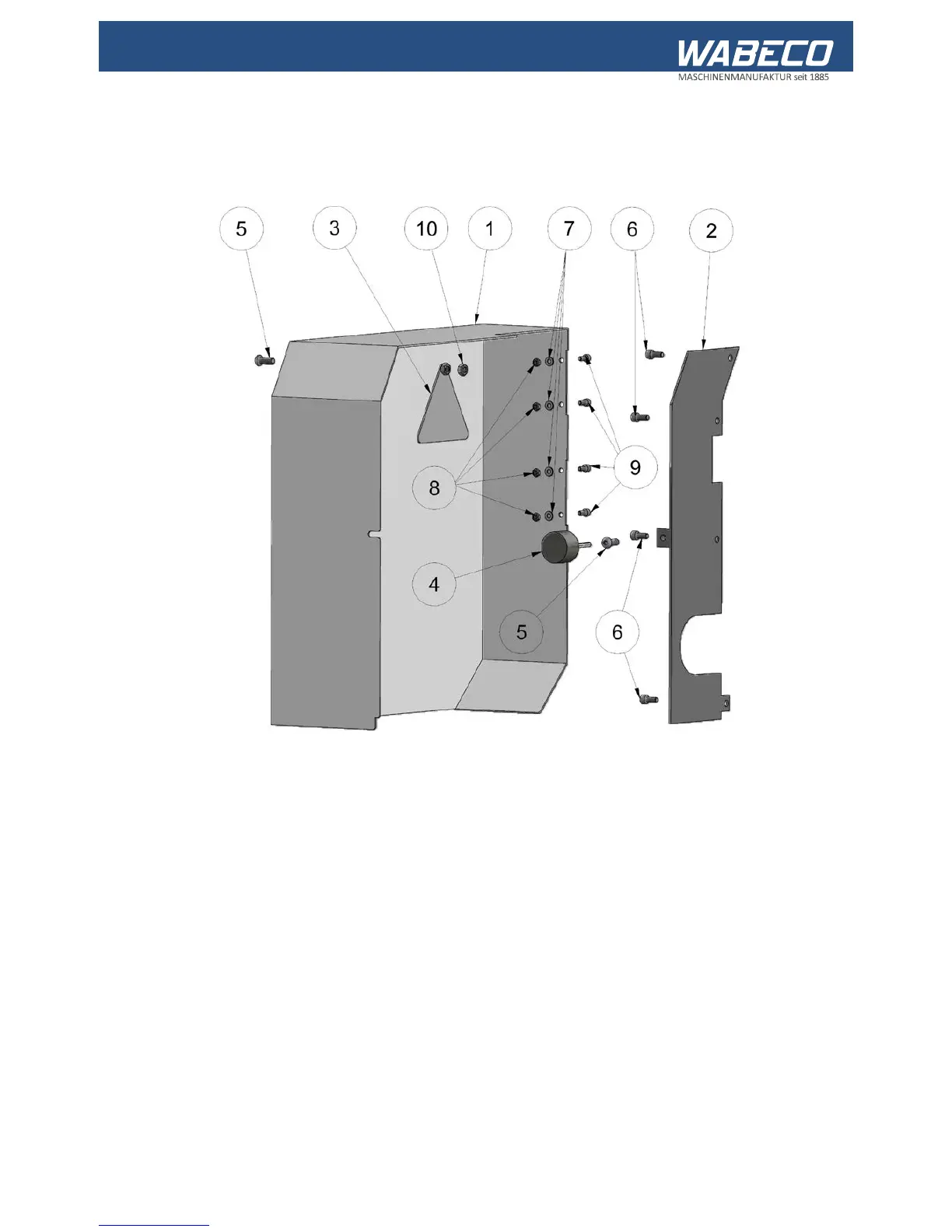

18.2 Protective hood, drive 1.4 kW motor

Part No. Items Order No. Description

1 1 51400401-0001 Protective hood, drive

2 1 51400404-0001 Protective plate, lead screw drive

3 1 51400485-0001 Protective plate, spindle aperture

4 1 51508001 Key KW 4 for safety screw

5 2 16173800006012 Safety screw

6 4 16191200005012 Screw

7 4 16112500004000 Washer

8 4 16193400004000 Nut

9 4 16191200004010 Screw

10 1 16193400006000 Nut
