159

25. Moving bezel (optional)

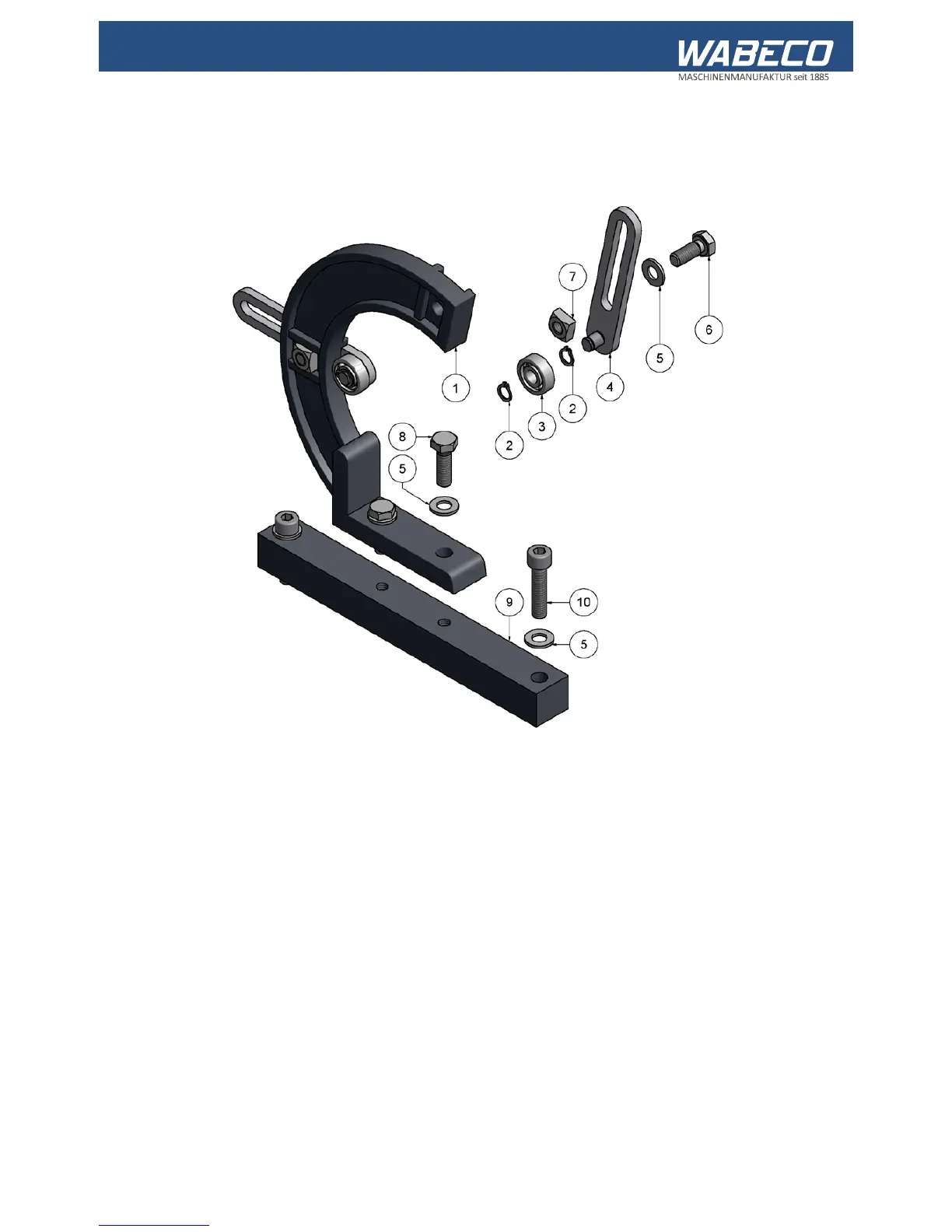

25.2 Drawing and legend

Part No. Items Order No. Description

1 1 51006831-0032 Basic body

2 4 16147100008000 Securing ring

3 2 51502117 Ball bearing

4 2 51401533-0001 Slider with axis

5 6 16112500008001 Washer

6 2 16193300008020 Screw

7 2 16155700008000 Nut

8 2 16193300008025 Screw

9 1 51003625-0001 Clamping bar

10 2 16191200008035 Screw
