23. Safety cabin (optional)
23.1 Setting up the safety cabin
When mounting the safety cabin to a WABECO tool cabinet, the appropriate bored holes are already
present. The tool cabinet ensures a safe base for the lathe or safety cabin.
If the safety cabinet is placed and screwed to another suitable surface, the 4 through holes must be

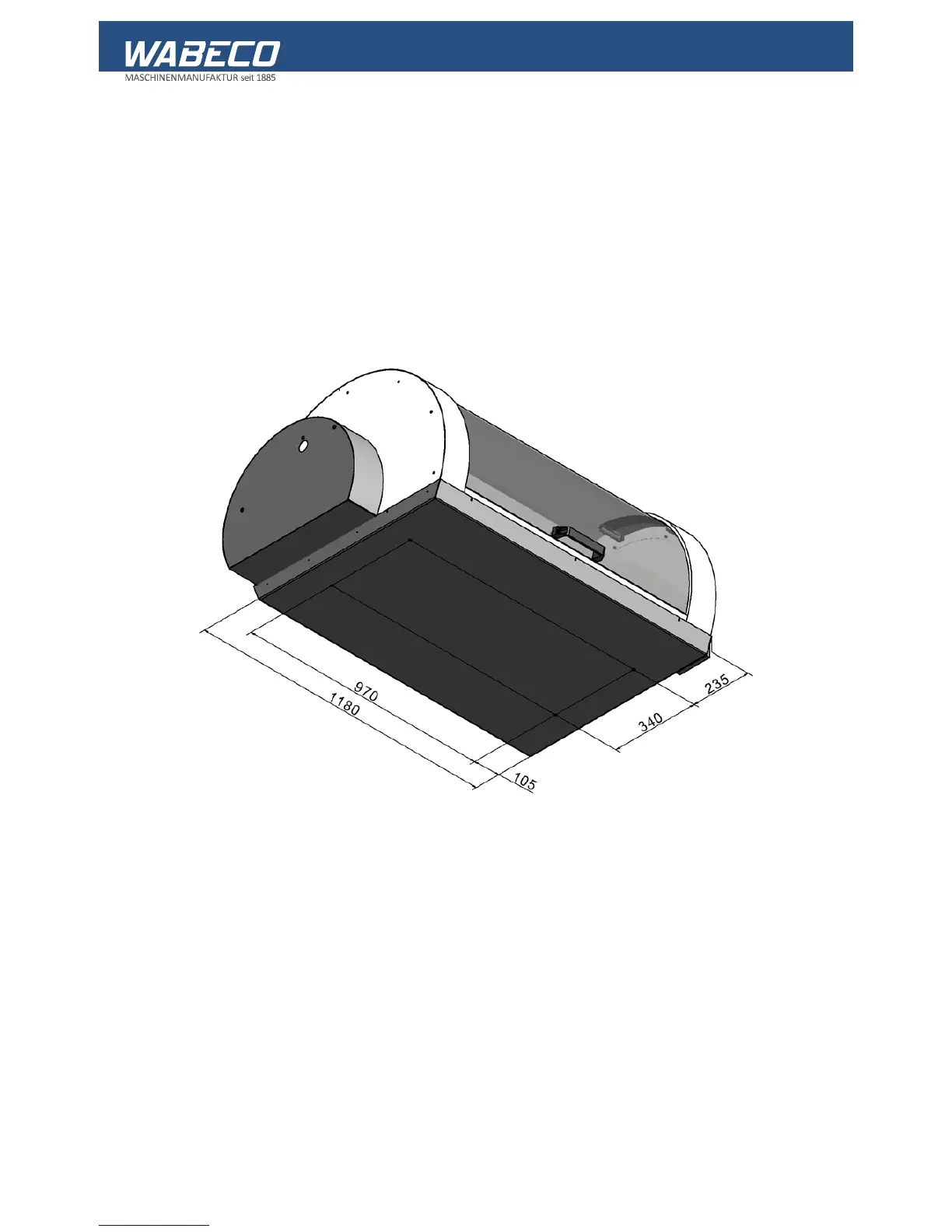

bored into the surface by the client. For the positions of the 4 fixture threaded sockets (thread M8) of
the safety cabinet, see diagram. The diameter of the through holes in the surface must be at least 9
mm.
23.2 Mounting of the safety cabin to the tool cabinet
(optional)
■ The safety cabinet (2) is positioned, as shown, on the tool cabinet (1).
■ The screws and washers required for assembly are included in the scope of delivery.
To screw the safety cabinet to the tool cabinet
proceed as follows:
1. Combine each screw with a washer
2. Open the door or the under cabinet
3. Push the screws from below, through the bored holes in the under cabinet, into the fixture
threaded sockets and tighten using an Allen key of size 6.
