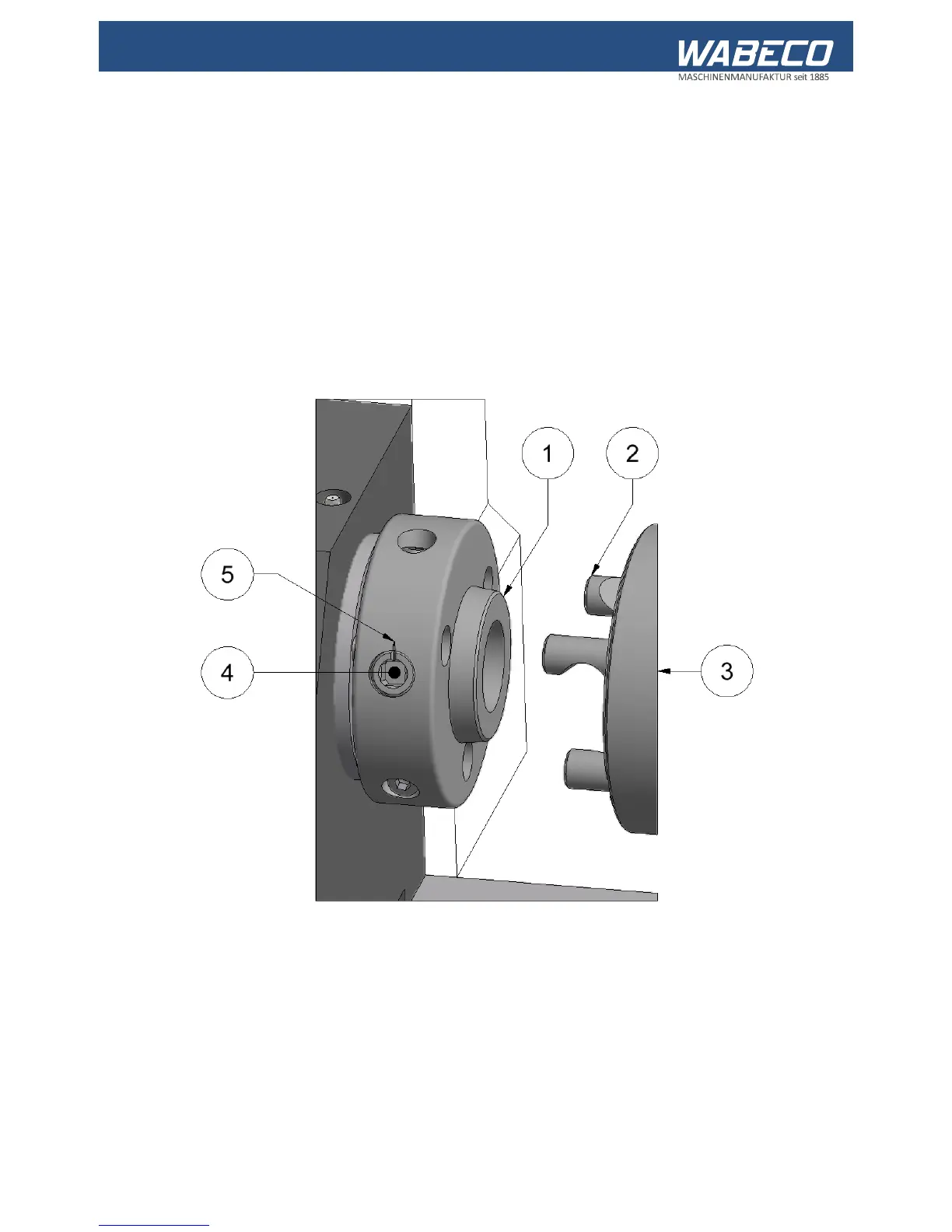

20. Camlock main spindle (optional)
20.1 Undoing a chuck or holding flange from the camlock main spindle lug
■ Open the three clamping tappets (4) located around the circumference of the main spindle (1)
using an Allen key in size 10 mm (not included in the scope of delivery).
■ After opening, the markings of the clamping tappets must, as shown, point to the markings on the
main spindle.
■ The moving of the camlock bolt (2) and thus the removal of the chuck or holding flange is only
possible if both markings point to one another.
■ Remove the chuck or the holding flange.
20.2 Blocking a chuck or holding flange on the camlock main spindle lug
■ Ensure that the markings on the clamping tappets (4) point to those markings on the main spindle
(1).
■ Place the chuck or holding flange on the main spindle, in doing so, insert the camlock bolt (2) into
the holes drilled in the main spindle.
■ Tighten the three clamping tappets (4) located around the circumference of the main spindle (1)
using an Allen key in size 10 mm (not included in the scope of delivery), so that the chuck or
holding flange pulls towards the main spindle.
