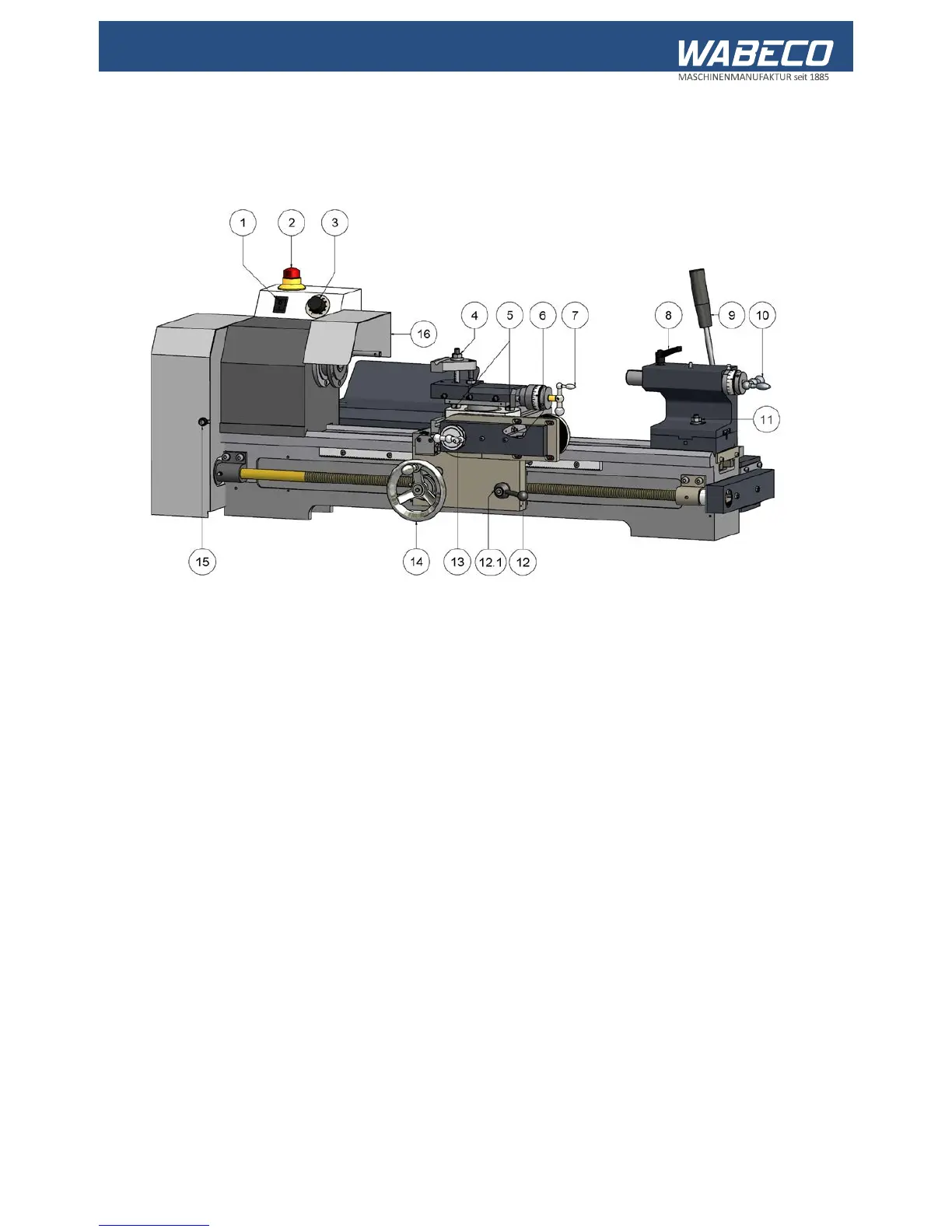

17. Operating elements
17.6 D6000-C lathes with 2.0 kW motor with trapezoidal-threaded spindle
1. Turn switch for forwards-reverse - main spindle
2. Emergency off switch
3. Potentiometer rotating knob for speed selection of the electrical drive motor
4. Tensioning nut for tool clamping plate
5. Holding screw for longitudinal skid
6. Clamping screw for clamping the tool skid
7. Ball crank for adjusting the longitudinal skid
8. Clamping lever for securing the tailstock sleeve
9. Clamping lever for tailstock quick tensioning
10. Ball crank for adjusting the tailstock sleeve
11. Tensioning nut for securing the tailstock to the guides
12. Switch lever for opening and closing the clasp nut
12.1 Threaded pin for securing the switch lever in CNC mode
13. Ball crank for adjusting the transverse skid
14. Hand wheel for quickly adjusting the tool skid
15. Safety screw for the drive protection hood
16. Chuck protection hood
