WABECO D6000 - Drawing and Legend

To Next Page

To Previous Page

157

24. Fixed bezel (optional)

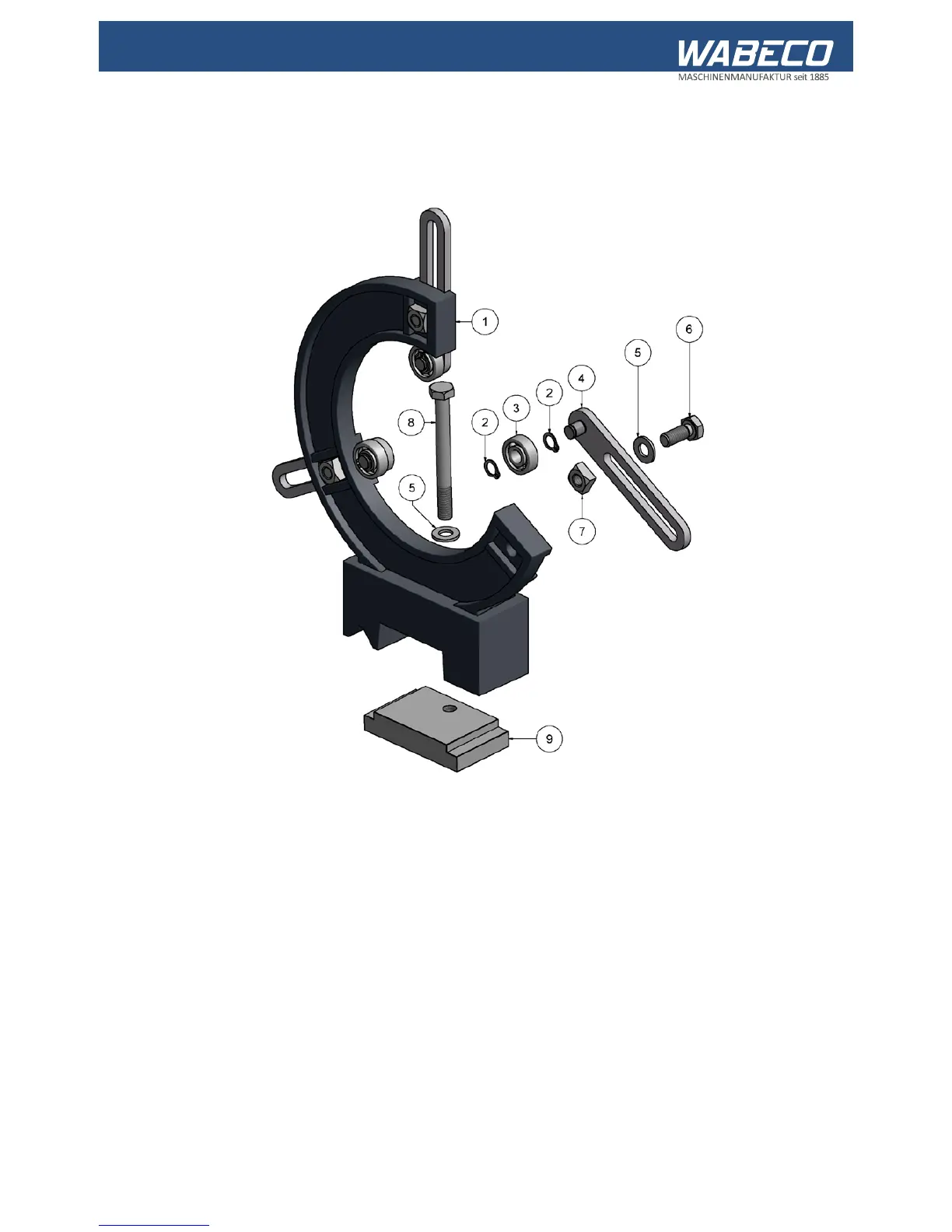

24.2 Drawing and legend

Part No. Items Order No. Description

1 1 51006831-0031 Basic body

16147100008000

Securing ring

3 3 51502117 Ball bearing

4 3 51401533-0001 Slider with axis

16112500008001

Washer

6 3 16193300008020 Screw

7 3 16155700008000 Nut

8 1 16193100008080 Screw

9 1 51001075-0001 Clamping bar
