18. Drawings and legends

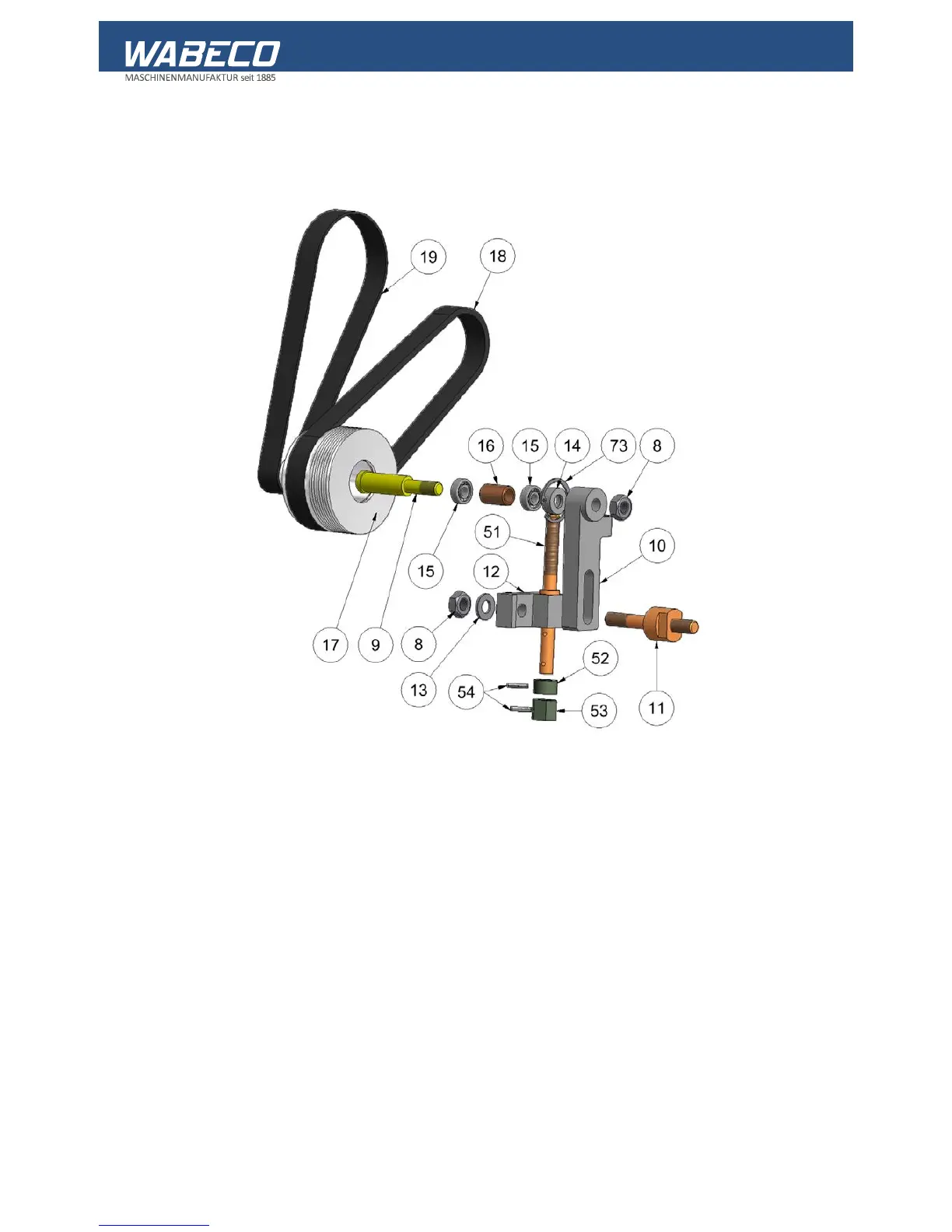

18.6. Headstock – Transmission with trapezoidal-threaded spindle

Part No.

Items

Order No.

Description

8 2 16193400010000 Nut

9 1 10600109 Axes

10 1 10600110 Transmission lever

11 1 10600111 Transmission bolt

12 1 10600112 Clamping piece

13 1 16112500010000 Washer

14 1 10600114 Sleeve

15 2 51502113 Ball bearing

16 1 10600116 Sleeve

17 1 10600117 Transmission gear wheel

18 1 51502310 Belt 508

19 1 51502315 Belt 559

51 1 10600151 Clamping screw

52 1 10600152 Adjusting ring

53 1 10600153 Hexagonal element

54 2 16073430003014 Spiral tensioning pin

73 1 16047200032000 Securing ring
