WABECO D6000 - Headstock - Tumbler Gear with Trapezoidal-Threaded Spindle

To Next Page

To Previous Page

18. Drawings and legends

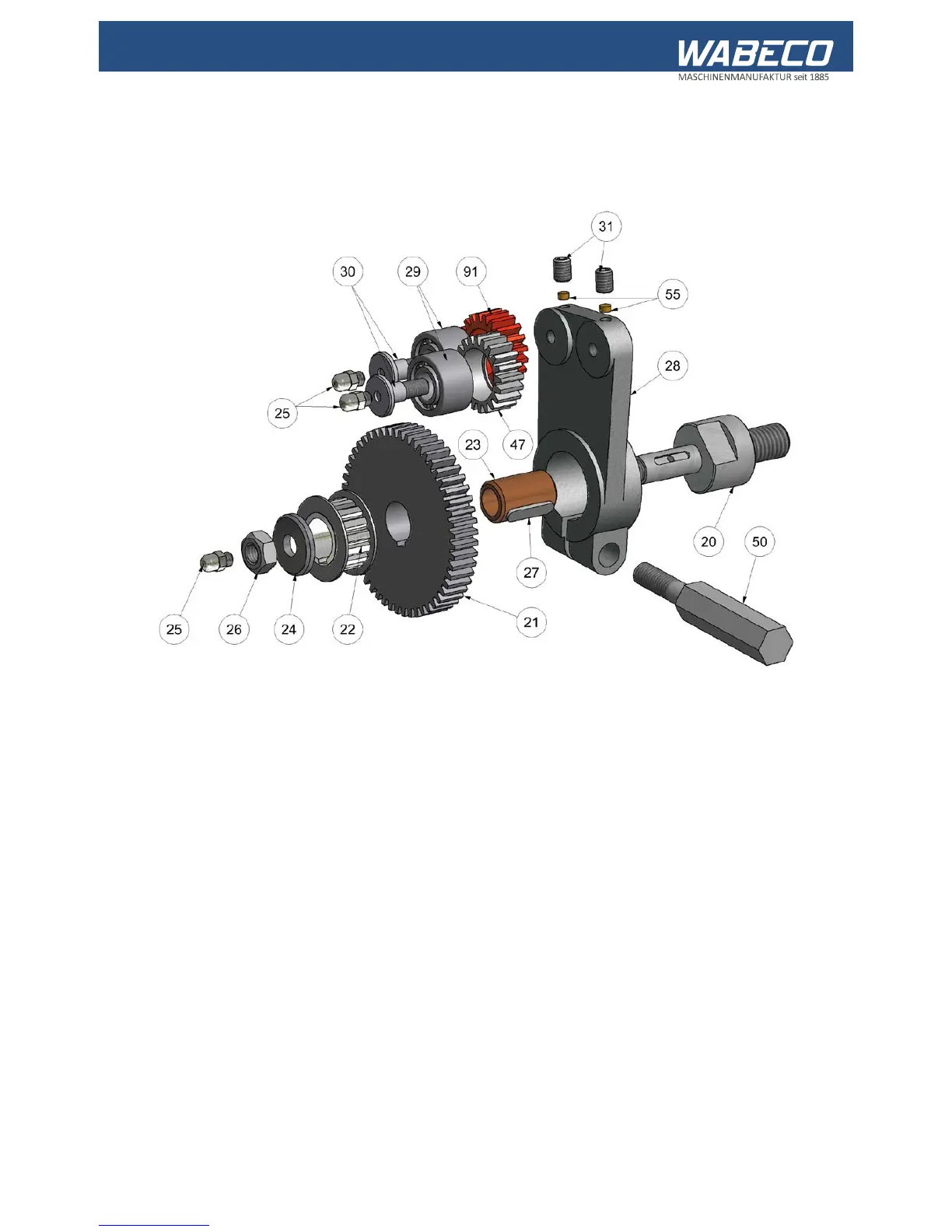

18.7. Headstock – Tumbler gear with trapezoidal-threaded spindle

Part No. Items Order No. Description

51004025-0033

Bolt

21 1 10600121 Toothed wheel

22 1 51006530-00011 Toothed belt wheel Z16

23 1 51007016-0003 Sleeve

24 1 51004020-0010 Washer

25 3 51502518 Lubrication nipple

16193400008000

Nut

27 1 1606885A050320 Parallel key

28 1 10600128 Lever

29 2 51502124 Needle sleeve

30 2 51004020-0011 Bolt

31 2 16191300005006 Threaded pin

10600147

Toothed wheel

50 1 10600150 Clamping screw

55 2 51007250-0001 Push piece

91 1 51008530-0001 Toothed wheel, plastic
