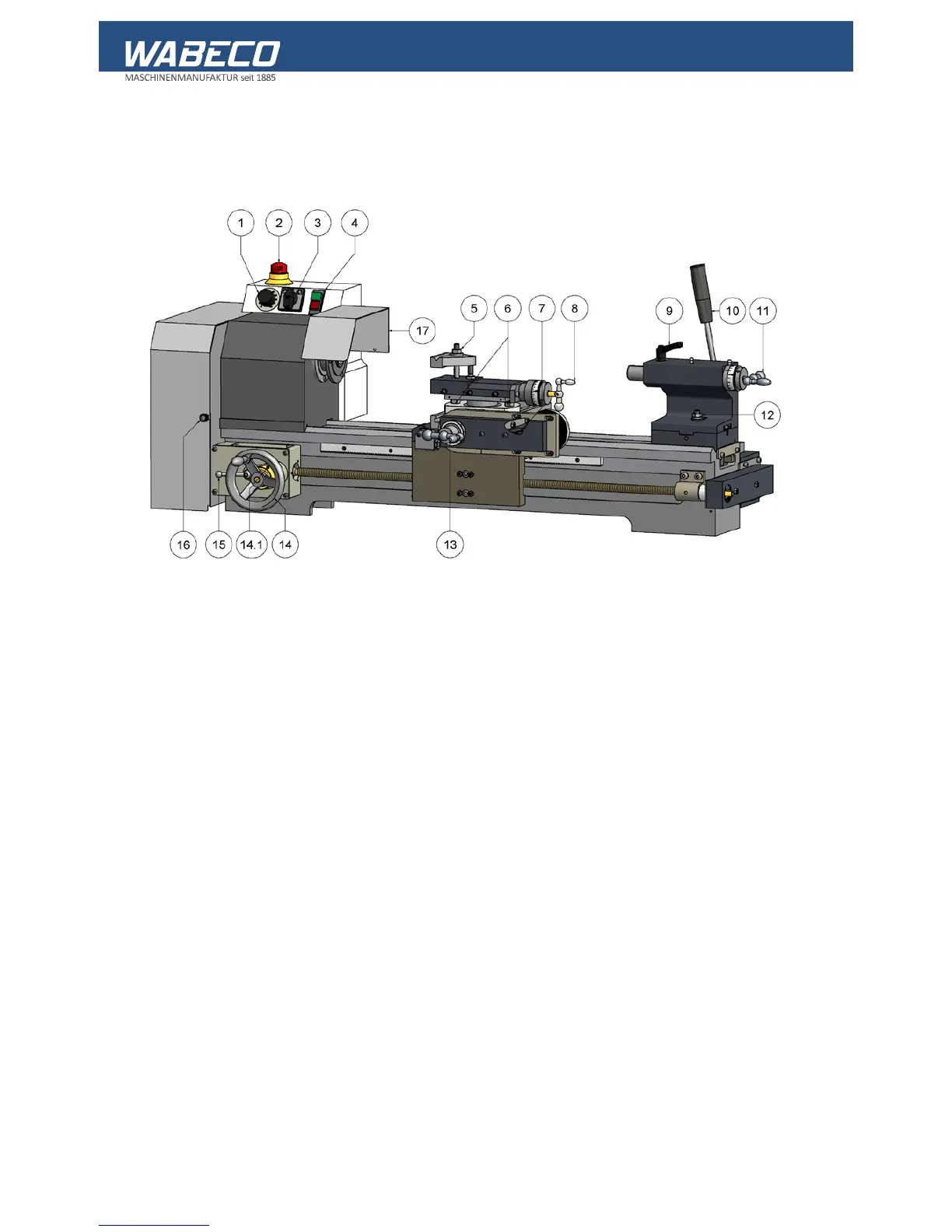

17. Operating elements
17.7 D6000-C lathes with 1.4 kW motor with ball screw spindle
1. Potentiometer rotating knob for speed selection of the electrical drive motor
2. Emergency off switch
3. Turn switch for forwards-reverse - main spindle
4. ON/OFF switch with low voltage trigger
5. Tensioning nut for tool clamping plate
6. Holding screw for longitudinal skid
7. Clamping screw for clamping the tool skid
8. Ball crank for adjusting the longitudinal skid
9. Clamping lever for securing the tailstock sleeve
10. Clamping lever for tailstock quick tensioning
11. Ball crank for adjusting the tailstock sleeve
12. Tensioning nut for securing the tailstock to the guides
13. Ball crank for adjusting the transverse skid
14. Hand wheel for quickly adjusting the tool skid
14.1 Threaded pin for securing the hand wheel in manual mode
15. Switch lever for switching the automatic feed on and off
16. Safety screw for the drive protection hood
17. Chuck protection hood
