18. Drawings and legends

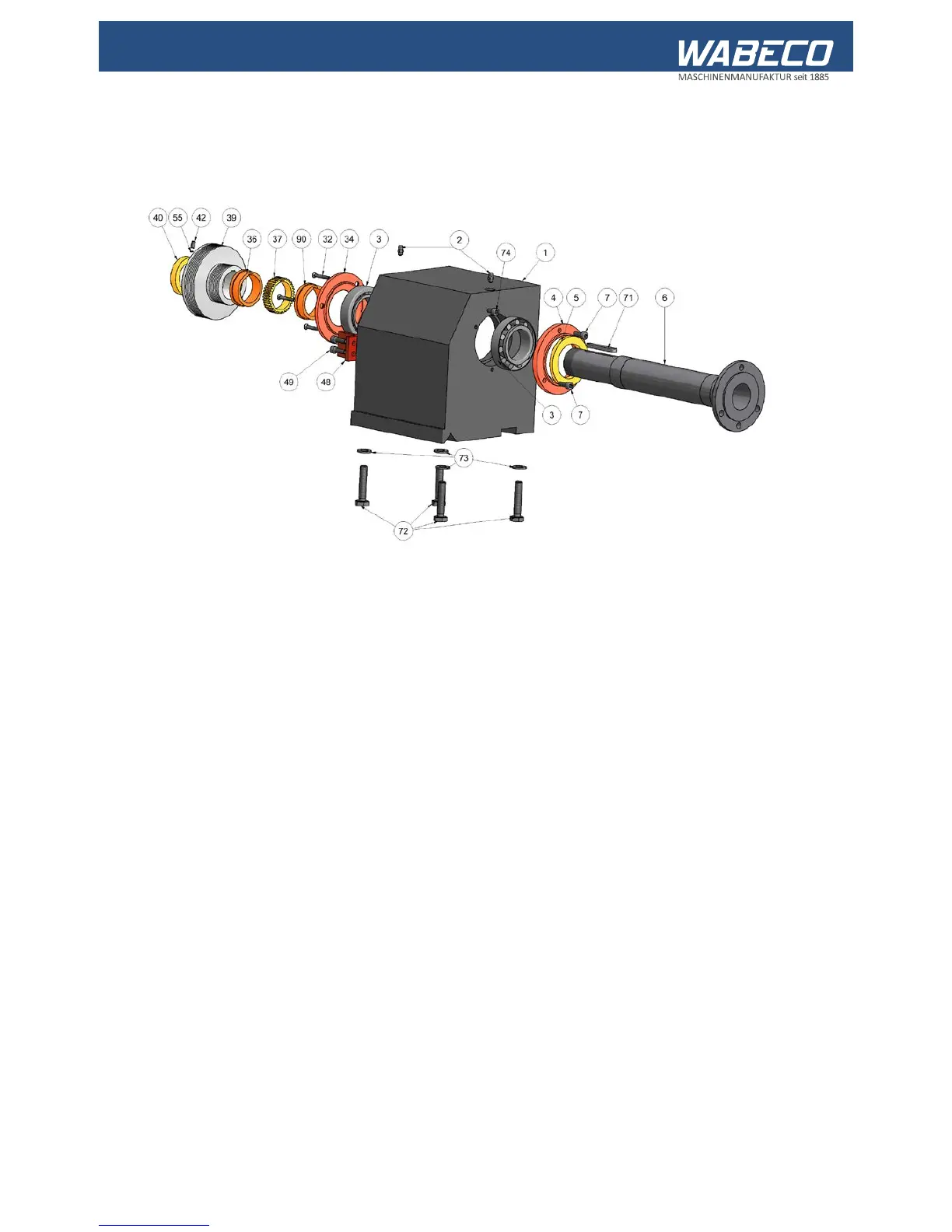

18.5 Headstock
Part No. Items Order No. Description
1 1 10600101 Headstock
2 2 51502517 Lubrication nipple
3 2 51502109 Tapered roller bearing
4 1 10600104 Flange
5 1 10600105 Oil scraper ring
6 1 10600106 Main spindle
7 3 16191200006012 Screw
32 3 16196500006014 Screw
34 1 10600134 Flange
36 1 10600136 Sleeve
37 1 10600137 Toothed wheel
39 1 10600139 Gear wheel
with 1.4 kW motor
1 51006600-0001 Gear wheel
with 2.0 kW motor
40 1 51004055-0007 Nut
42 1 16091300006006 Threaded pin
48 1 10600148 Bracket
49 2 16191200006016 Screw
55 1 51007250-0001 Push piece
71 1 10600171 Parallel key
72 4 16193300010050 Screw
73 4 16112500010000 Washer
74 1 16191200005012 Screw
90 1 51004055-0003
Bush with collar
