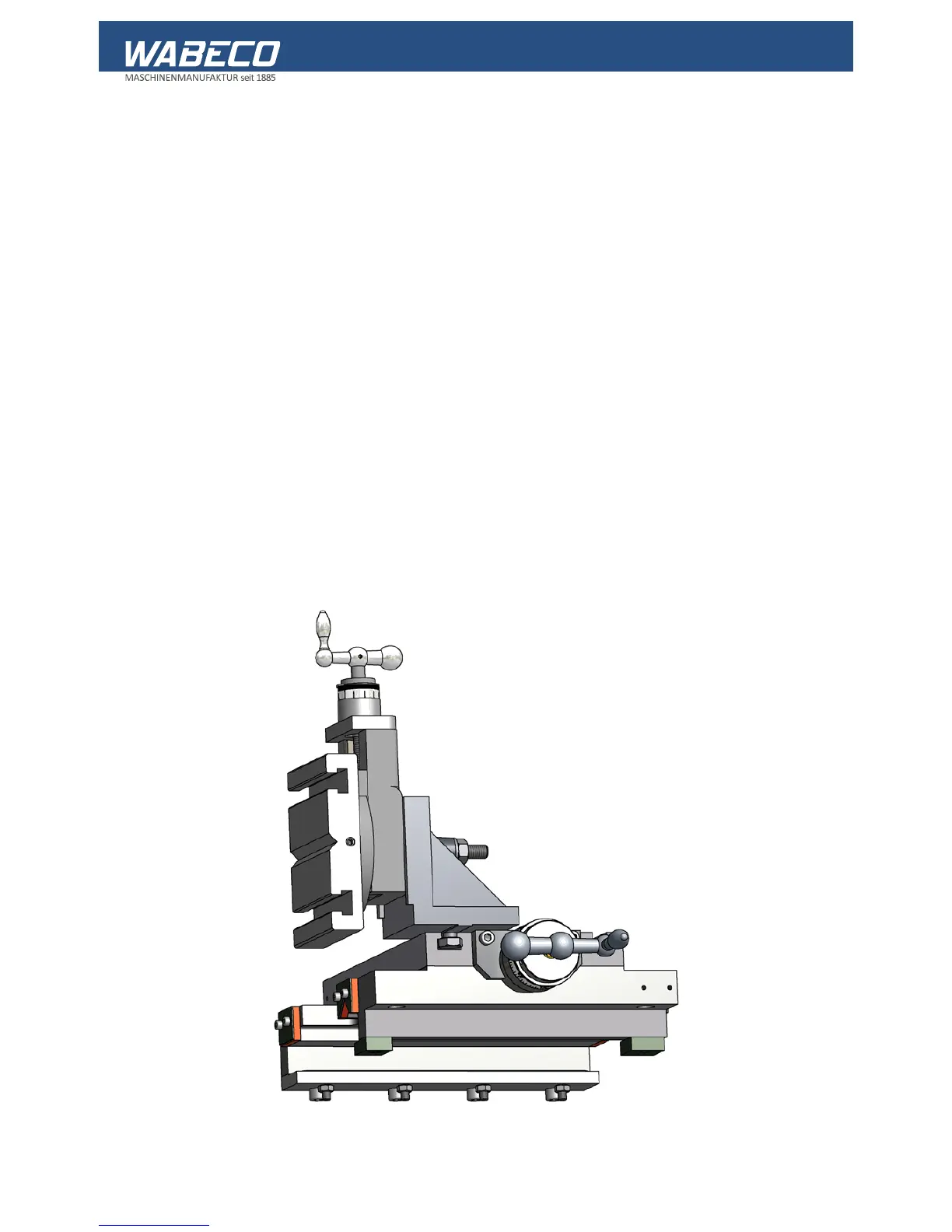

26. Tensioning bracket with milling machine table (optional)
For drilling and milling work
■ For creating even surfaces and grooves
■ The feed and return motions are carried out by the work piece.
■ A machine vice may also be fitted to the milling machine table (6).
■ The tool must be clamped as short as possible in the collect (risk of breakage).
■ The width of the T-groove is 12 mm, the gap between the two T-grooves is 90 mm.
■ The prismatic groove in the middle of the milling machine table is used to secure round parts.
26.1 Mounting the tensioning bracket with milling machine table to the lathe
1. Remove the longitudinal skid from the transverse skid of the lathe
2. Clean the surface of the transverse skid of dirt and shavings. This is the only way to ensure a flat
and safe surface.
3. Place the tensioning bracket as shown laterally onto the transverse skid. In doing so, insert the
screw head on the underside of the tensioning bracket as shown into the T-groove of the
transverse skid.
4. Slide the tensioning bracket with milling machine table to the required position on the transverse
skid and secure the tensioning bracket.
