150

22. Coolant system (optional)

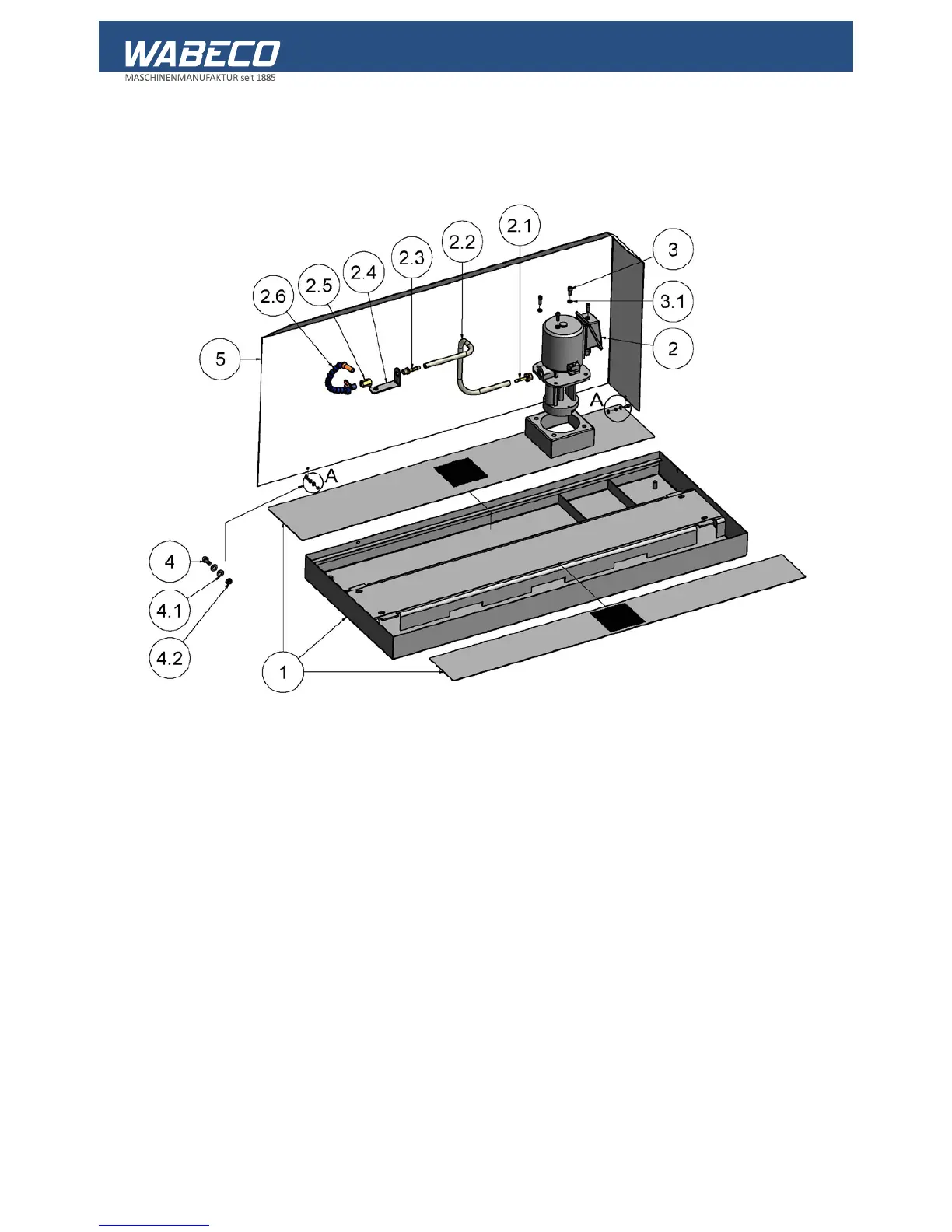

22.9 Drawing and legend

Part No. Items Order No. Description

1 1 51401163-0001 Coolant system (tank and two shelf inserts)

2 1 51500119 Coolant pump

2.1 1 51504320 Screw-fitted hose bush

2.2 1 51504218 PVC fabric hose

2.3 1 51504318 Screw-fitted hose bush

2.4 1 51400400-0001 Bracket

2.5 1 51504349 Collar

2.6 1 51502507 Coolant hose with shut-off valve

3 4 16191200006016 Screw

3.1 4 16112500006001 Washer

4 2 16191200004010 Screw

4.1 4 16112500004000 Washer

4.2 2 16193400004000 Nut

5 1 51400235-0001 Spray protection wall 1060x445
