18. Drawings and legends

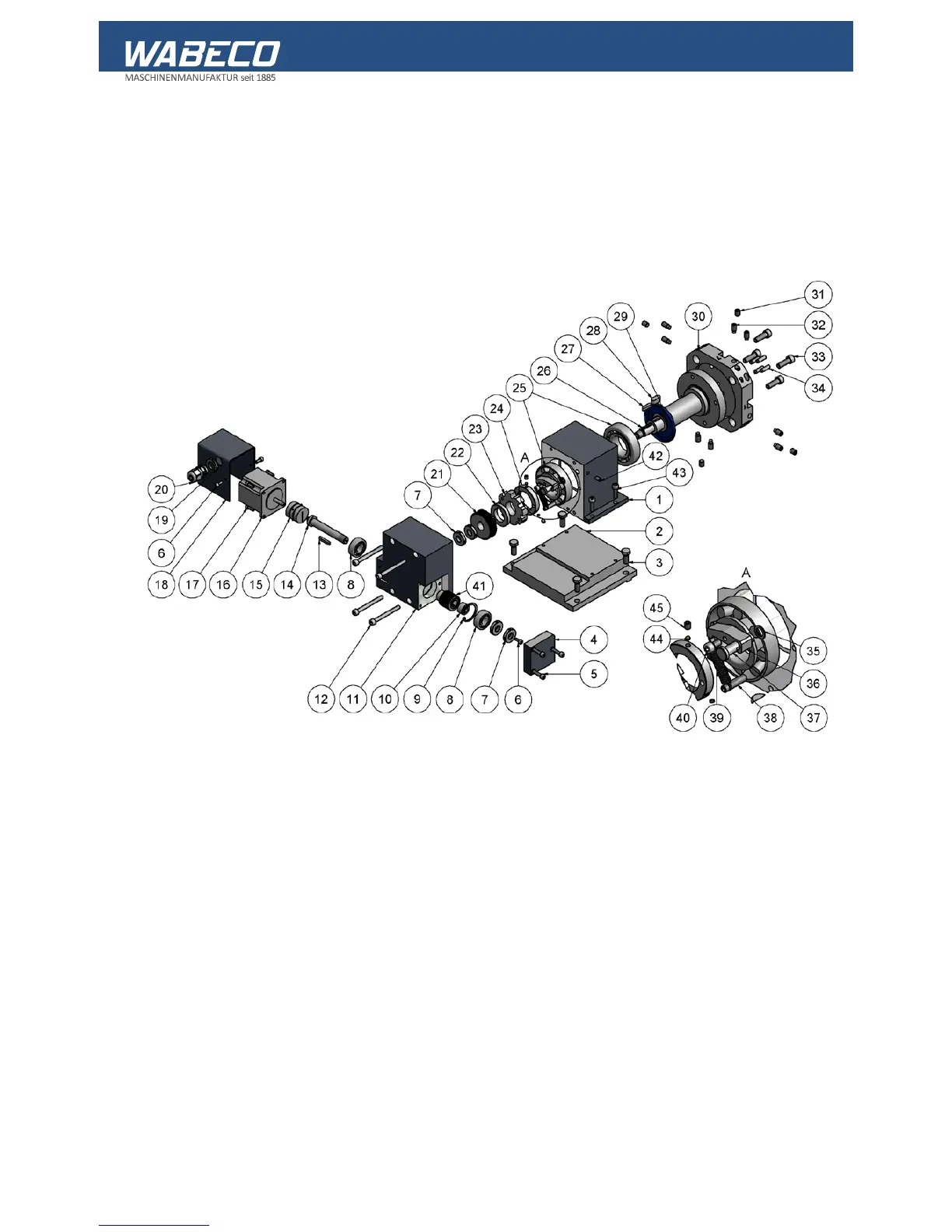

18.28 CNC 8-fold tool changer (optional)

In order to control the automatic 8-fold tool changer with the control software, this must be

parameterised and activated in nccad professional in accordance with the enclosed parameter

sheet.

Part No. Items Order No. Description

1 1 51508480-00011 Basic body

2 1 Base plate (contained in tool changer)

3 4 16193300008020 Screw

4 1 51508480-00031 Bearing cover

5 3 16191200005020 Screw

6 3 16191200004010 Screw

7 4 51004025-0021 Capstan nut

8 2 51502118 Ball bearing

9 1 16047200032000 Securing ring

10 1 51004018-0003 Spacer ring

11 1 51508480-00021 Cover

12 4 16191200006060 Screw

13 1 1606885A040425 Parallel key

14 1 Worm gear (contained in tool changer)
