17. Operating elements
17.9 Switch cover on CNC operating console
for CC-D6000 lathes with 1.4 kW motor

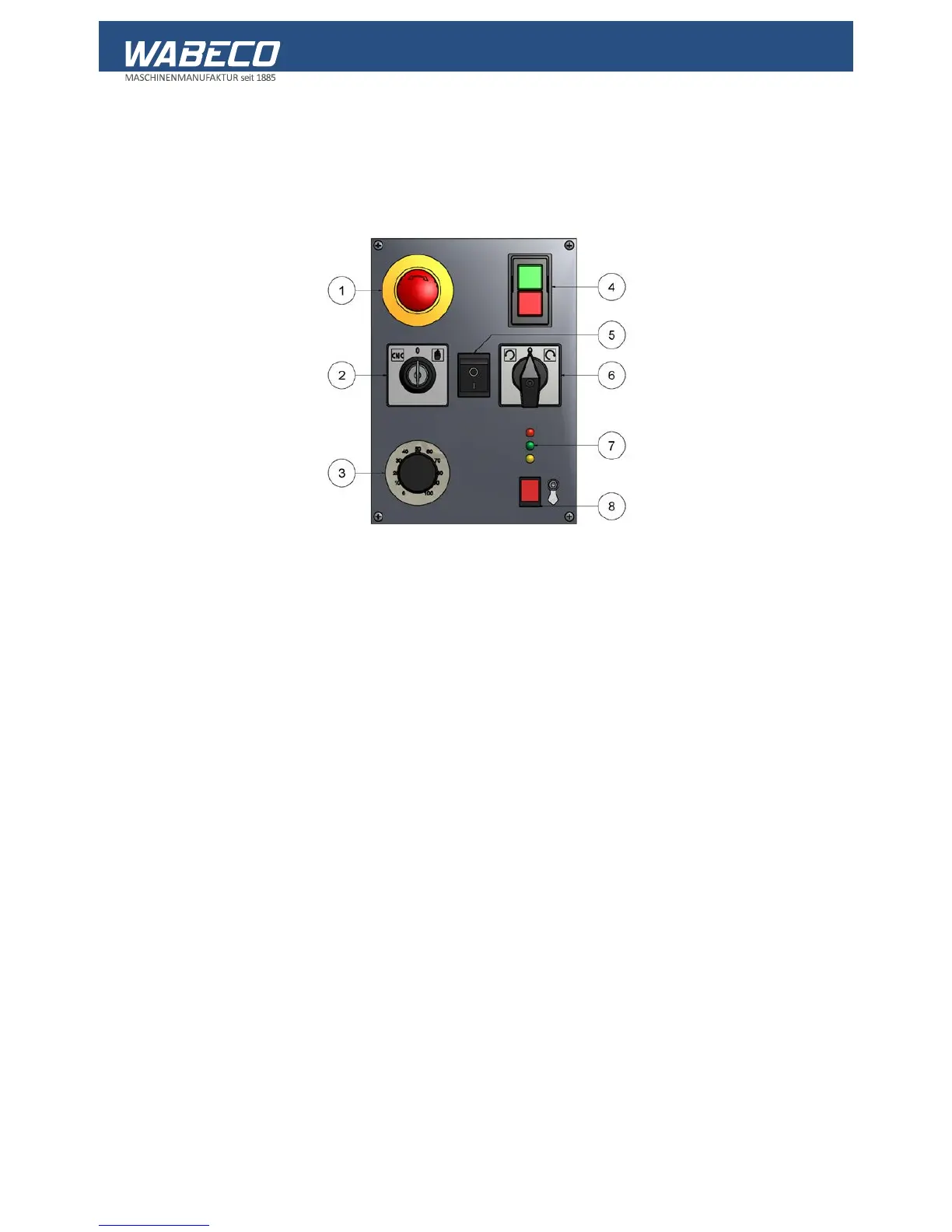

1. Emergency off switch
2. Mode selection switch (CNC operation) (Idle position) (Set-up mode)
3. Potentiometer rotating knob for speed selection of the electrical drive motor
4. ON/OFF switch with low voltage trigger
5. Coolant ON/OFF (if coolant pump is connected)
6. Turn switch for forwards-reverse - main spindle
7. Diodes to display the status of the controller
8. Reset switch for controller
