122

18. Drawings and legends

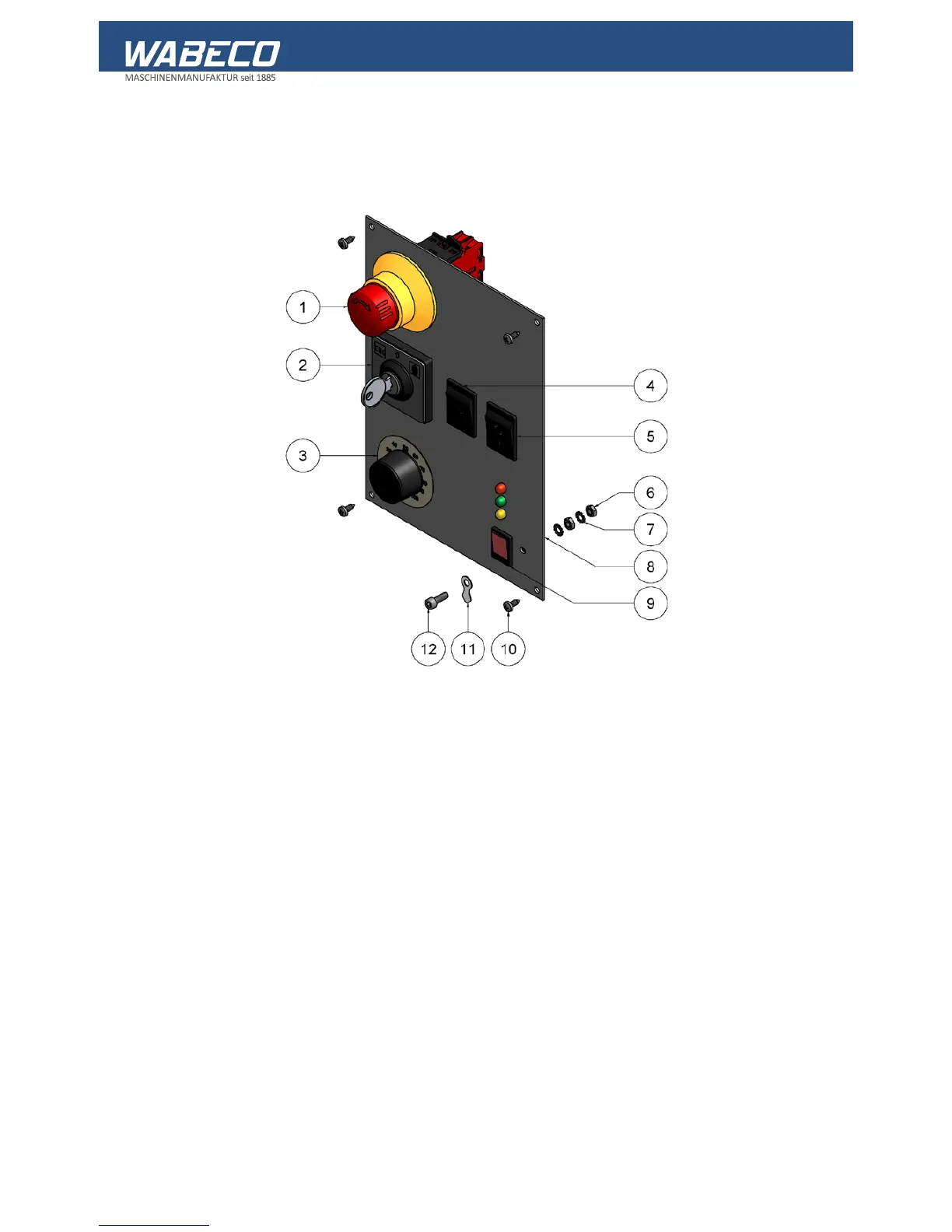

18.25 Industrial screen and membrane keyboard specifically for 2.0 kW motor

Part No. Items Order No. Description

1 1 51500624-0001 Emergency off switch, complete

2 1 51500600 Switch for operating modes

3 1 51500807-0002 Potentiometer with cable and connector

3.1 1 51500807-00021 Potentiometer, complete

4 1 51500602 Switch

5 1 51500601 Switch

6 2 16193400004000 Nut

7 2 16167980004000 Fanned washer

8 1 51401540-0001 Switch cover

9 LEDs with switch (contained in controller package)

10 4 16179810003095 Screw

11 1 51501304 Symbol for earthed connection

12 1 16191200004012 Screw
