18. Drawings and legends

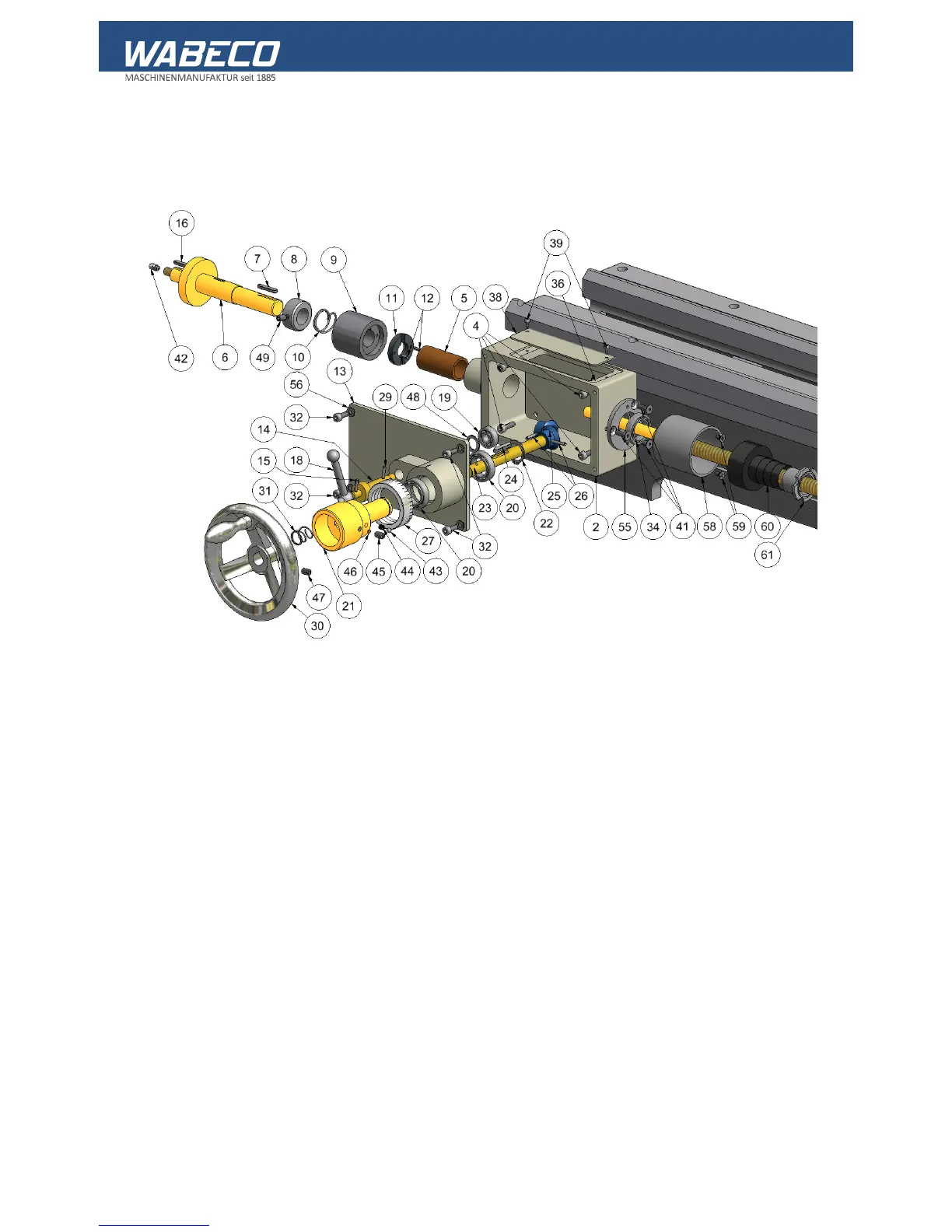

18.11 Bed with lead screw with ball screw spindle

Part No. Items Order No. Description

2 1 10600602 Support bearing, left

4 4 16191200005016 Screw

5 1 10600605 Sleeve

6 1 51004050-0011 Feed shaft

7 1 1606885A050325 Parallel key

8 1 51004035-0006 Adjusting ring

9 1 51004045-0006 Coupling element

10 1 51502021 Pressure spring

11 1 51003435-0001 Coupling disc

12 2 16073430003010 Spiral tensioning pin

13 1 10600613 Housing cover

14 1 51004020-0015 Eccentric shaft

15 1 16073430003014 Spiral tensioning pin

16 1 1606885A050325 Parallel key

18 1 51507018-0001 Lever
