27. Adjustable longitudinal stopper (optional)

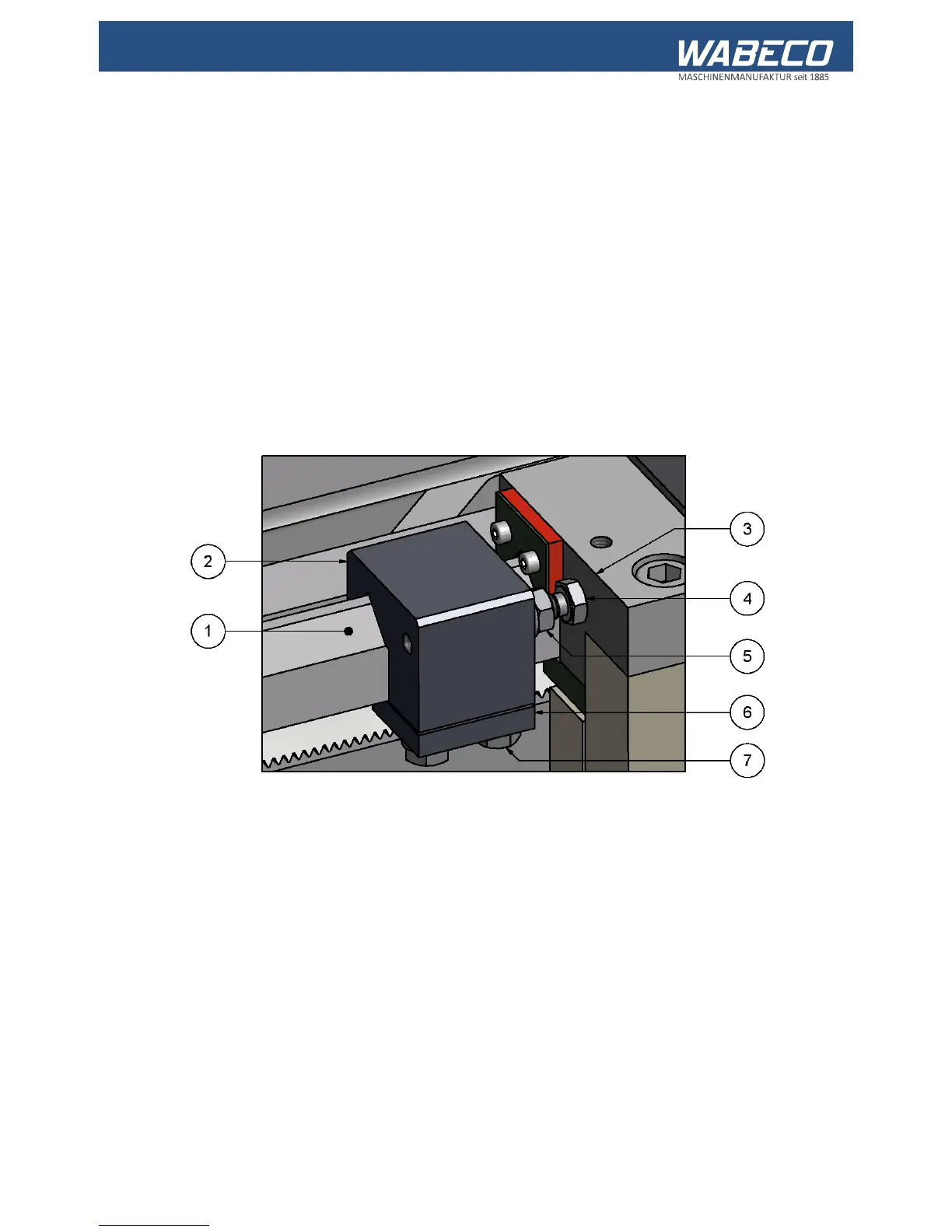

27.1 Mounting and operation of the adjustable longitudinal stopper
1. Undo the two screws (7) and remove the clamping piece (6).
2. Place the longitudinal stopper (2) on the front guide prism (2) of the lathe.
3. Lightly screw the clamping piece (6) with the screws (7) into place as shown.
4. The longitudinal stopper can now be pushed to the desired position.
5. Tighten the screws (6) to secure the longitudinal stopper to the machine bed.
6. Fine adjustment can be made using the screw (4) that acts as stopper for the transverse skid (3).
7. To do this, release the counter nut (5) and turn the screw (4) in the desired direction.
8. Then tighten the counter nut (5) back up again.
