17. Operating elements

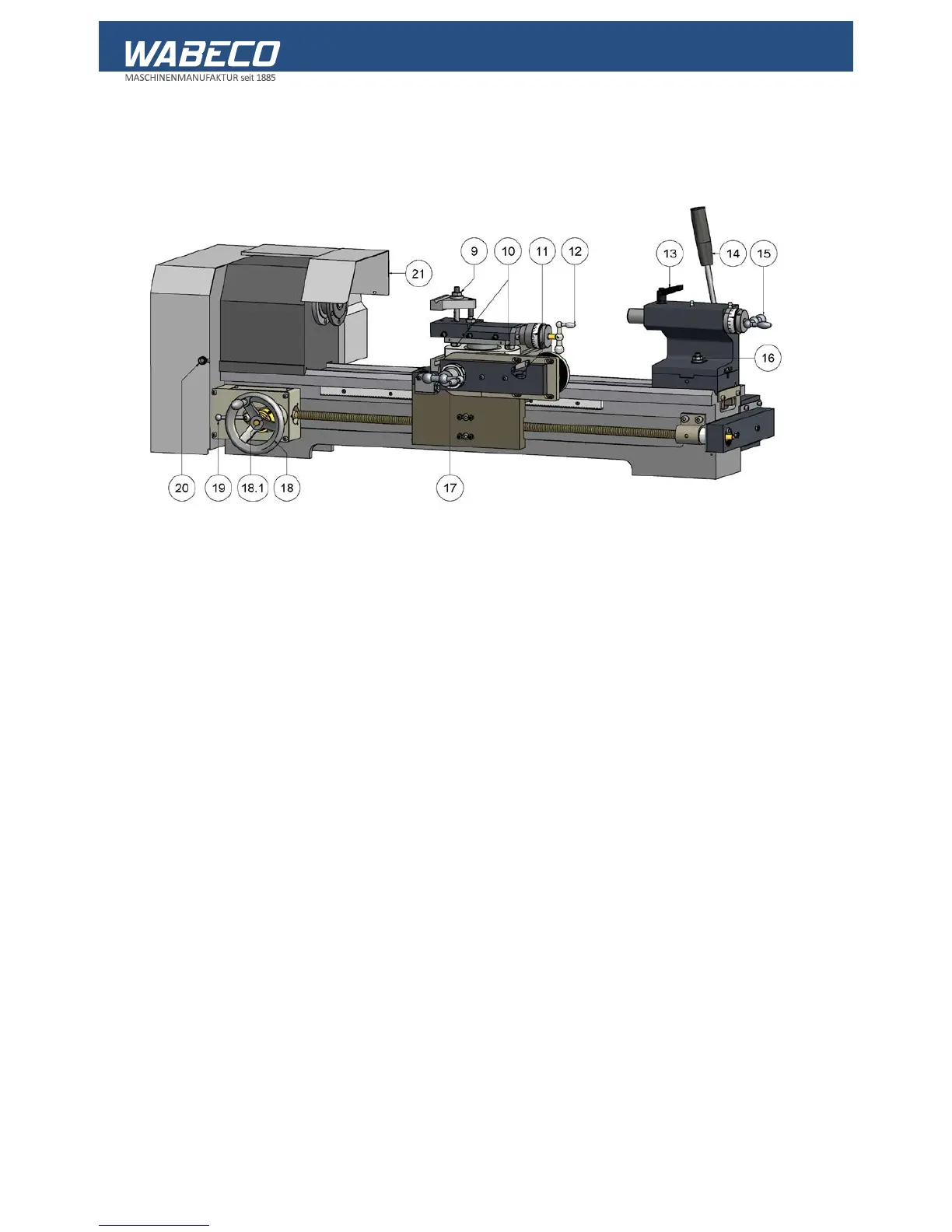

17.13 CC-D6000 lathes with 1.4 kW motor with ball screw spindle
9. Tensioning nut for tool clamping plate
10. Holding screw for longitudinal skid
11. Clamping screw for clamping the tool skid
12. Ball crank for adjusting the longitudinal skid
13. Clamping lever for securing the tailstock sleeve
14. Clamping lever for tailstock quick tensioning
15. Ball crank for adjusting the tailstock sleeve
16. Tensioning nut for securing the tailstock to the guides
17. Ball crank for adjusting the transverse skid
18. Hand wheel for quickly adjusting the tool skid
18.1 Threaded pin for securing the hand wheel in manual mode
19. Switch lever for switching the automatic feed on and off
20. Safety screw for the drive protection hood
21. Chuck protection hood
