151

22. Coolant system (optional)

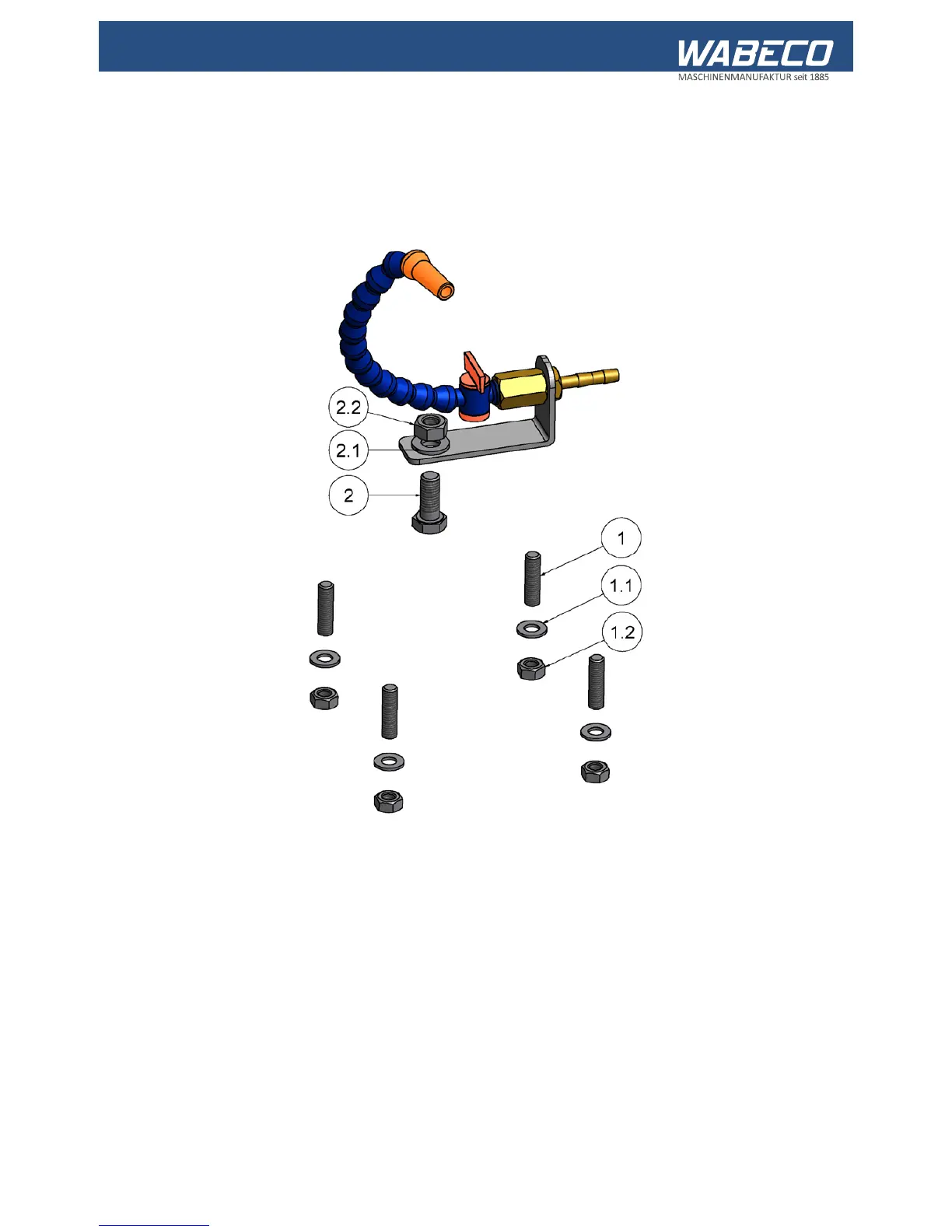

22.9 Drawing and legend

Screws for securing the lathe to the coolant system and for securing the segmented coolant hose.

Part No. Items Order No. Description

1 4 16091300008030 Threaded pin

1.1 4 16112500008001 Washer

1.2 4 16193400008000 Nut

2 1 161933000010025 Screw

2.1 1 16112500010000 Washer

2.2 1 16193400010000 Nut
