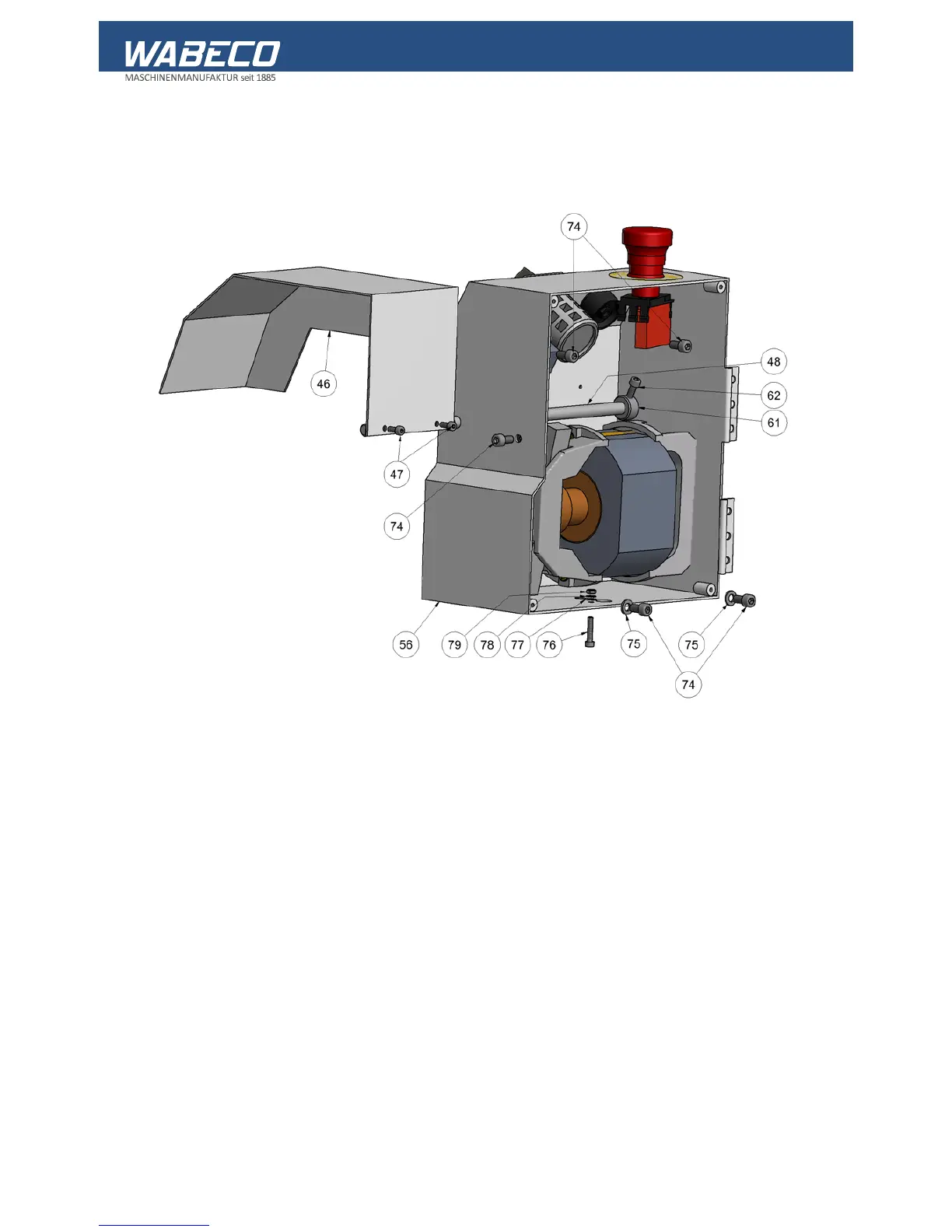

18. Drawings and legends

18.1 Electronic console, 1.4 kW motor

Part No. Items Order No. Description

46 1 51400403-0001 Chuck protective hood

47 2 16191200004010 Screw

48 1 51004010-0010 Guide rod

56 1 51400406-0001 Electronic housing

61 1 160705A0010000 Adjusting ring

62 1 16191200005020 Screw

74 5 16191200006012 Screw

75 2 16112500006001 Washer

76 1 16191200004016 Screw

77 1 51501304 Symbol for earthed connection

78 2 16167980004000 Fanned washer

79 2 16193400004000 Nut
