18. Drawings and legends

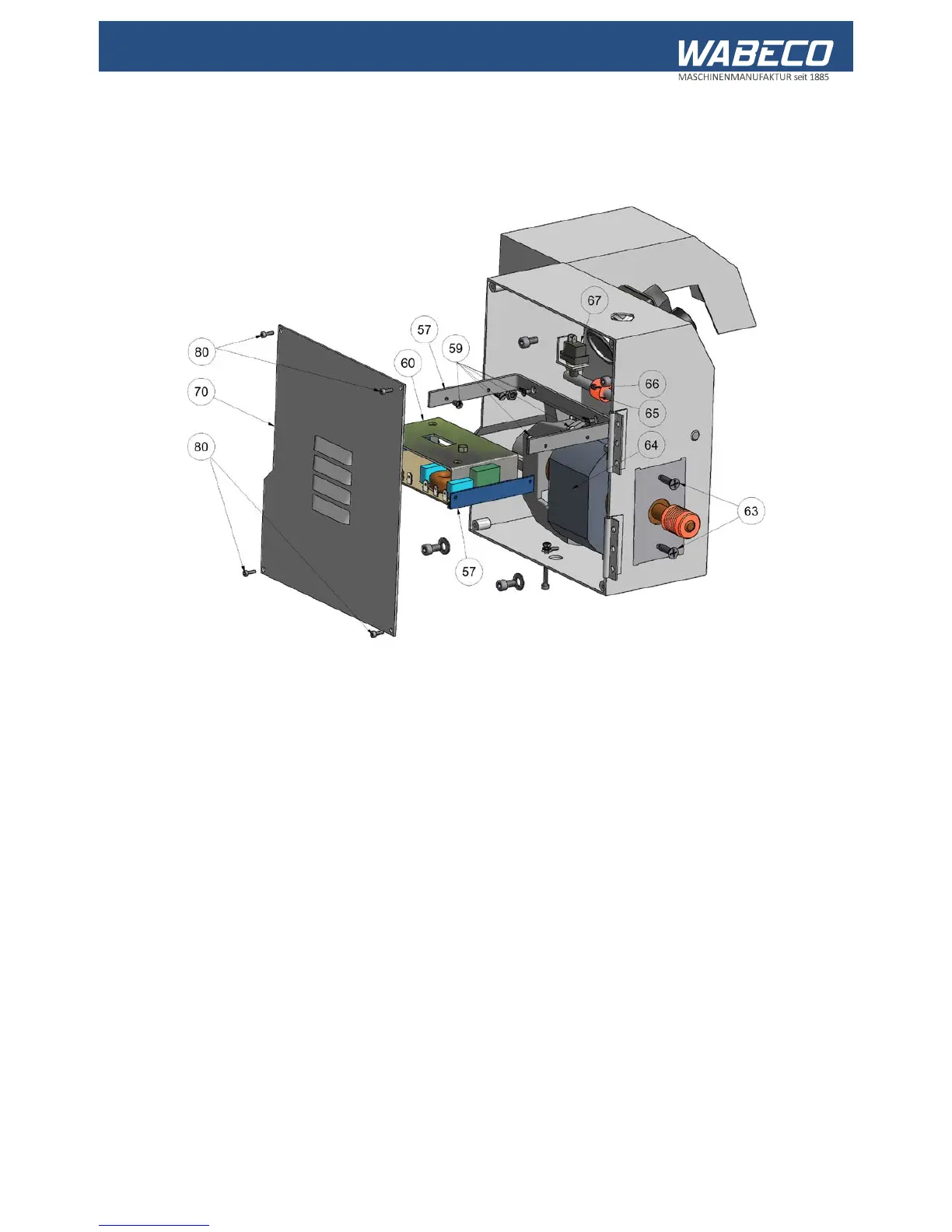

18.1 Electronic console, 1.4 kW motor

Part No. Items Order No. Description

57 1 51001015-00021 Board holder with guide rails

59 6 16196500004008 Screw

60 1 51501402 Control board

63 2 16179910006020 Screw

64 1 51500102-0002 Motor

65 1 51004020-0003 Eccentric tappet

66 1 16191300005006 Threaded pin

67 1 51500619 End switch

70 1 51400405-0001 Cover plate

80 4 16191200004010 Screw
