129

18. Drawings and legends

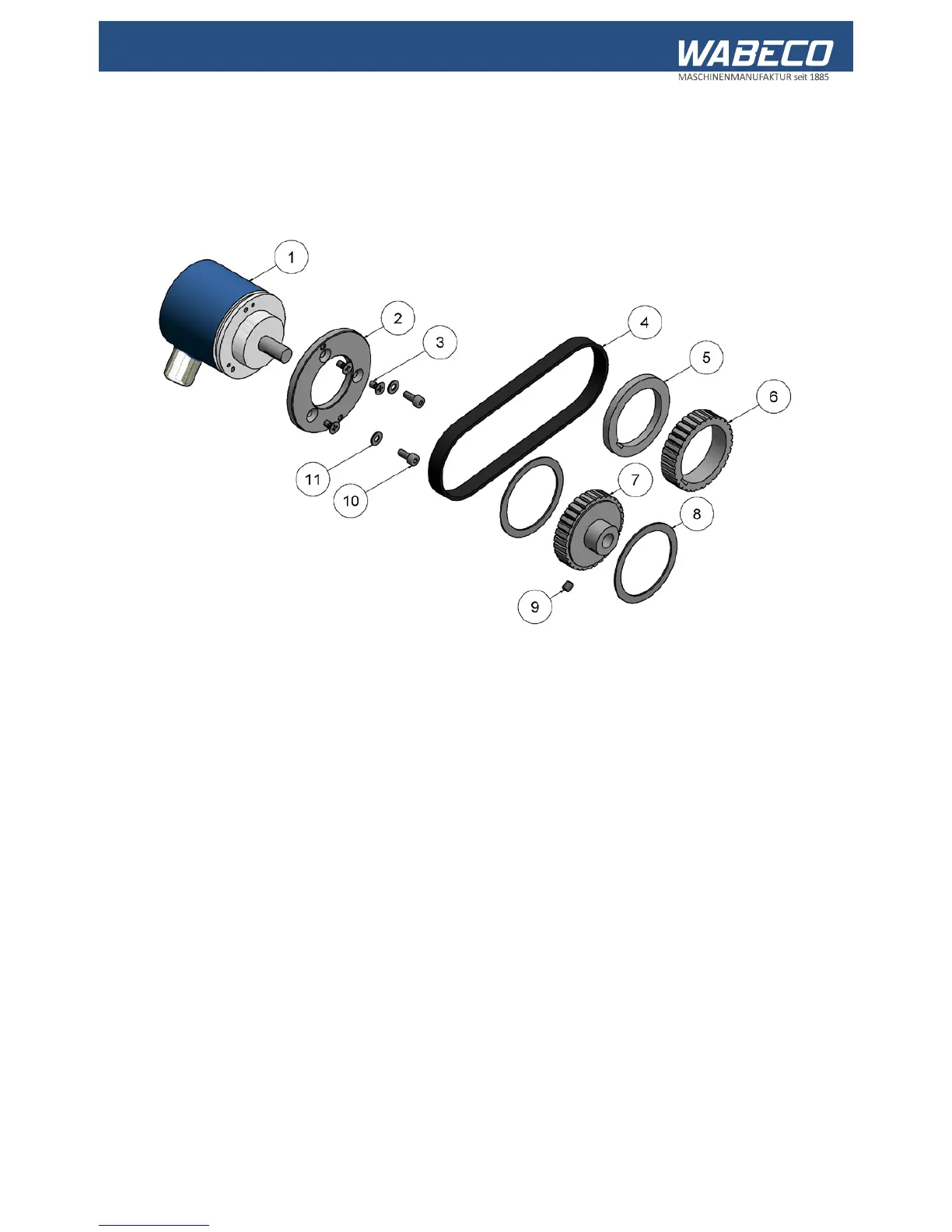

18.27 Speed sensor (optional)

for 2.0 kW motor without safety cabin

Part No. Items Order No. Description

1 1 51500101-0001 Speed sensor

2 1 51006575-0003 Holding flange

16196500004008

Screw

4 1 51502323 Gear belt

5 1 51004055-0004 Sleeve

51006555-0002

Toothed belt wheel Z32

7 1 51006555-0001 Toothed belt wheel Z32

8 2 16000002214020 Adjusting washer

16191300005006

Threaded pin

10 2 16191200004010 Screw

11 2 16112500004000 Washer
