Auxiliary equipment
Padfoot shells
206
BA RC50_RC70 en 00

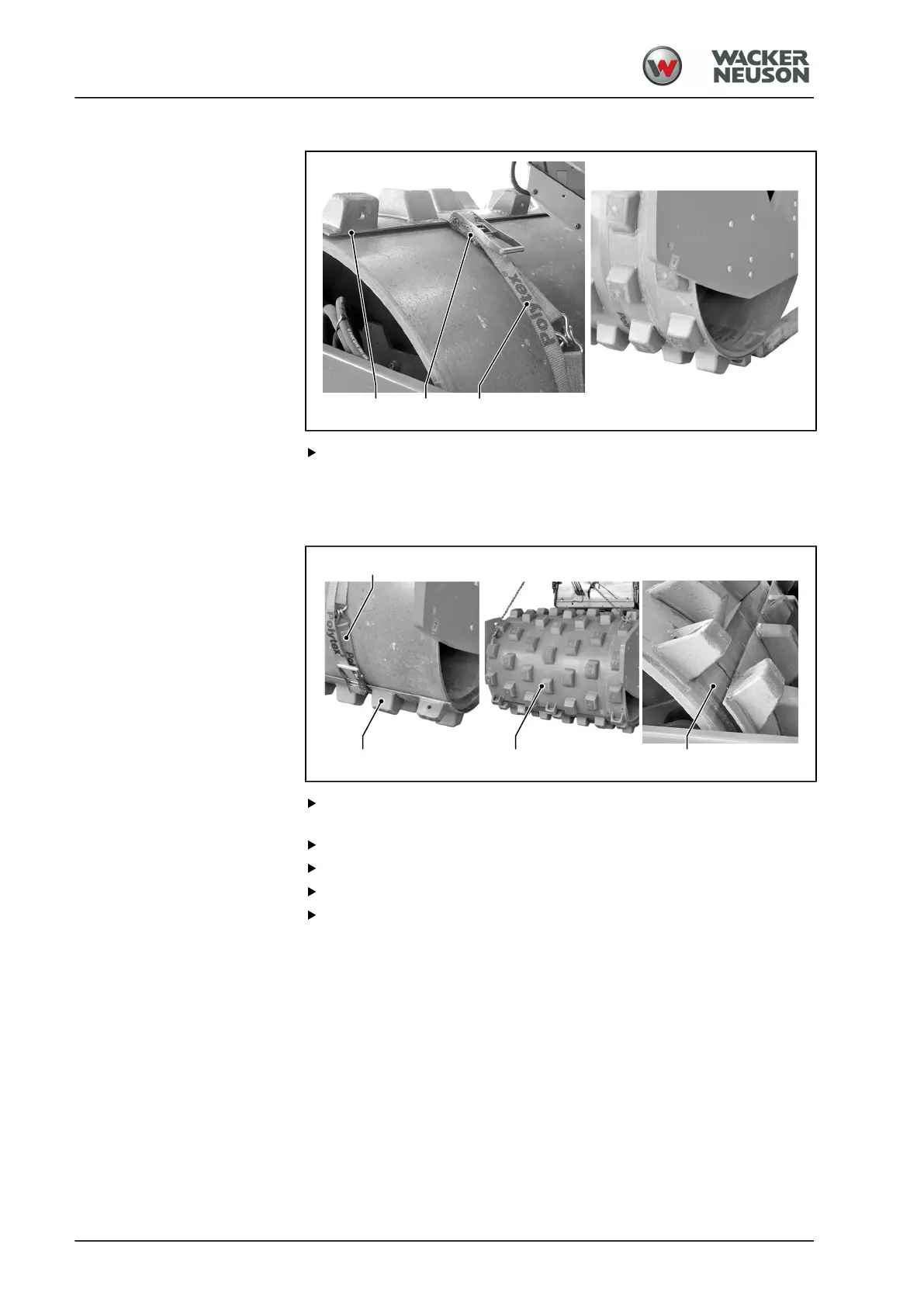

Tightening the first padfoot shell
Secure the shell half [1] with a tension strap [2] to prevent it from
coming away: Attach the tension strap [2] so that the buckle [3] is
behind the upper edge of the shell. Tighten the tension strap [2].
Mounting the second padfoot shell
Start the diesel engine and drive the machine slowly forwards until
the shell half [1] lies horizontally.
Switch off the diesel engine and remove the ignition key.
Remove the square timbers from the working range of the machine.
Loosen and remove the tension strap [2].
Place the second half of the shell [3] on the drum. Make sure that the
clearance [4] is identical on both sides.
