Wacker Neuson RC50

Description
Control stand
44
BA RC50_RC70 en 00
2.02.04 Control panel
11
2
3 5
4 6 7
12 1 13 9 10 8

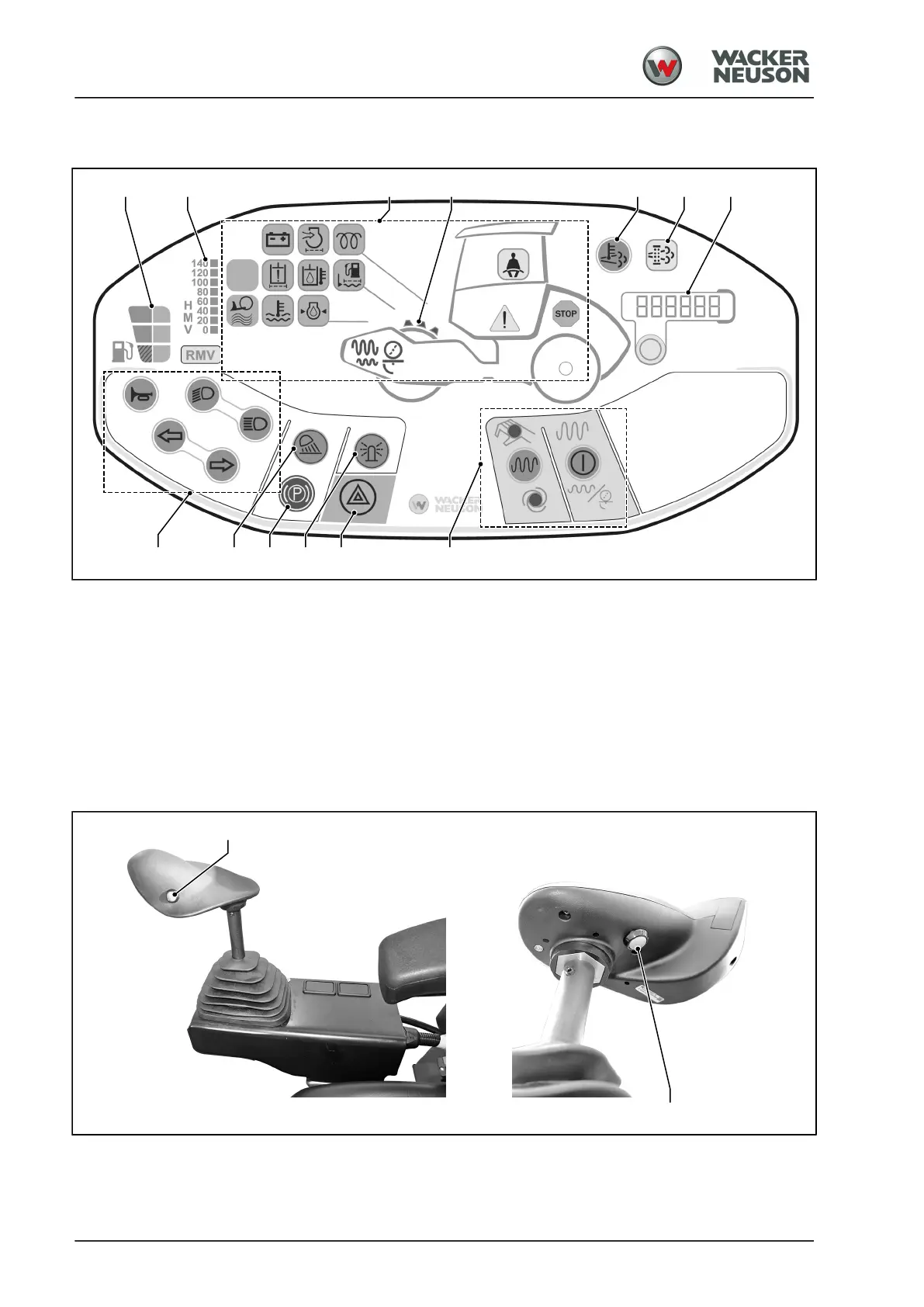

[1] Warning and indicator lights [2] Driving light/turn signal/signal horn switch
[3] Work light [4] Rotating beacon
[5] Parking brake [6] Hazard warning light
[7] Dynamic compaction system [8] Info display for system info/diagnostic codes
[9] DPF regeneration switch [10] DPF indicator light
[11] Fuel fill level indicator [12] Compaction display
[13] No function
2.02.05 Drive lever
1
2
[1] Dynamic compaction system switch [2] Signal horn switch
