Wacker Neuson RC50 User Manual

Description
Control stand
BA RC50_RC70 en 00
43

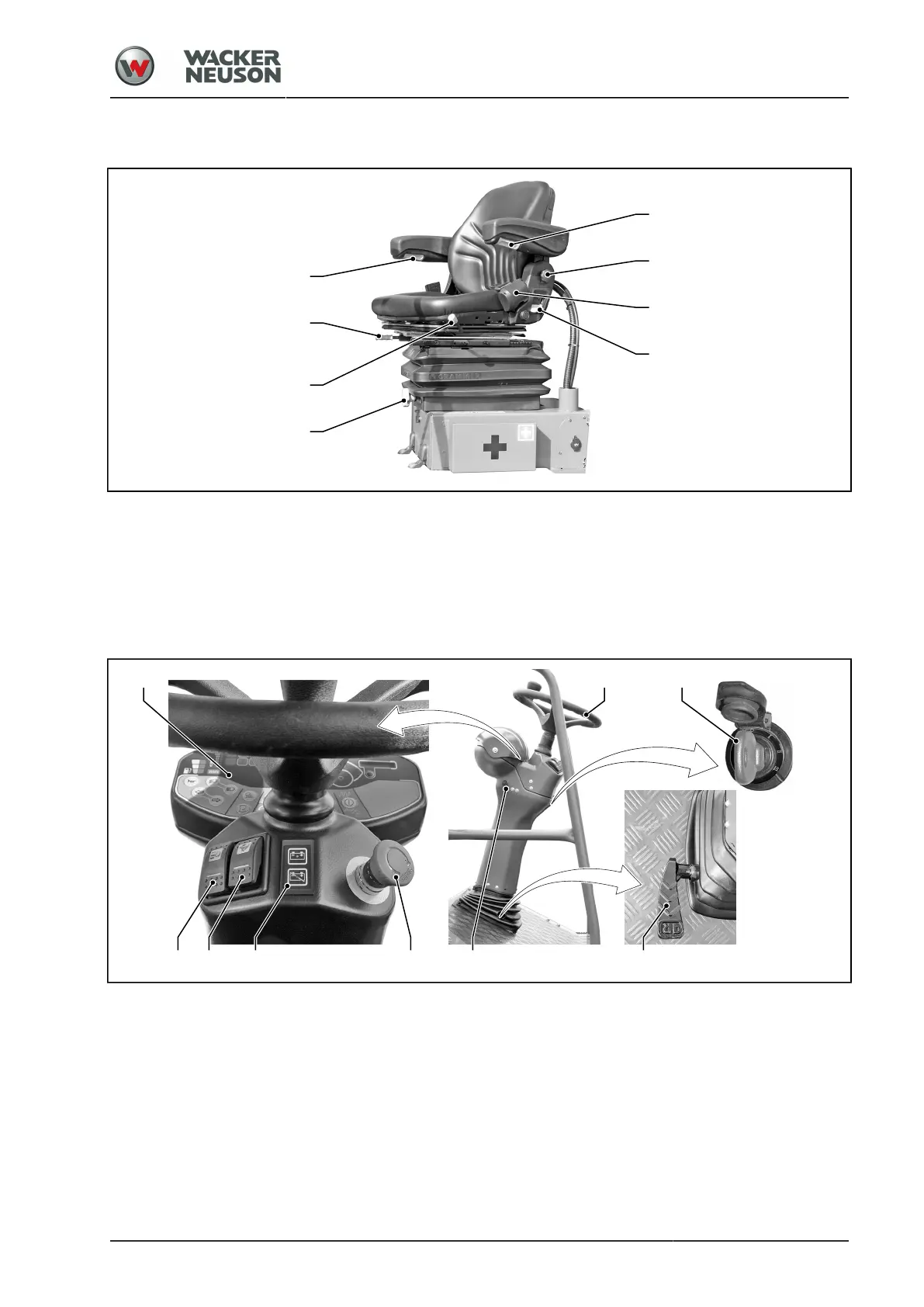

2.02.02 Seat console
4
5
6
1
7
3
2
5
[1] Seat belt [2] Seat adjustment forwards/backwards
[3] Seat adjustment seat rotation [4] Seat adjustment weight
[5] Armrest inclination adjustment [6] Armrest height adjustment
[7] Backrest inclination adjustment
2.02.03 Steering column
1
9
7
8
6 5 4
2 3
[1] Control panel [2] Steering wheel
[3] Electrical system/engine start switch [4] Steering column inclination adjustment
[5] Machine diagnostic interface [6] EMERGENCY STOP switch
[7] Battery isolator switch [8] Gear shifting switch
[9] Engine speed switch
