Wacker Neuson RC50 User Manual

Auxiliary equipment

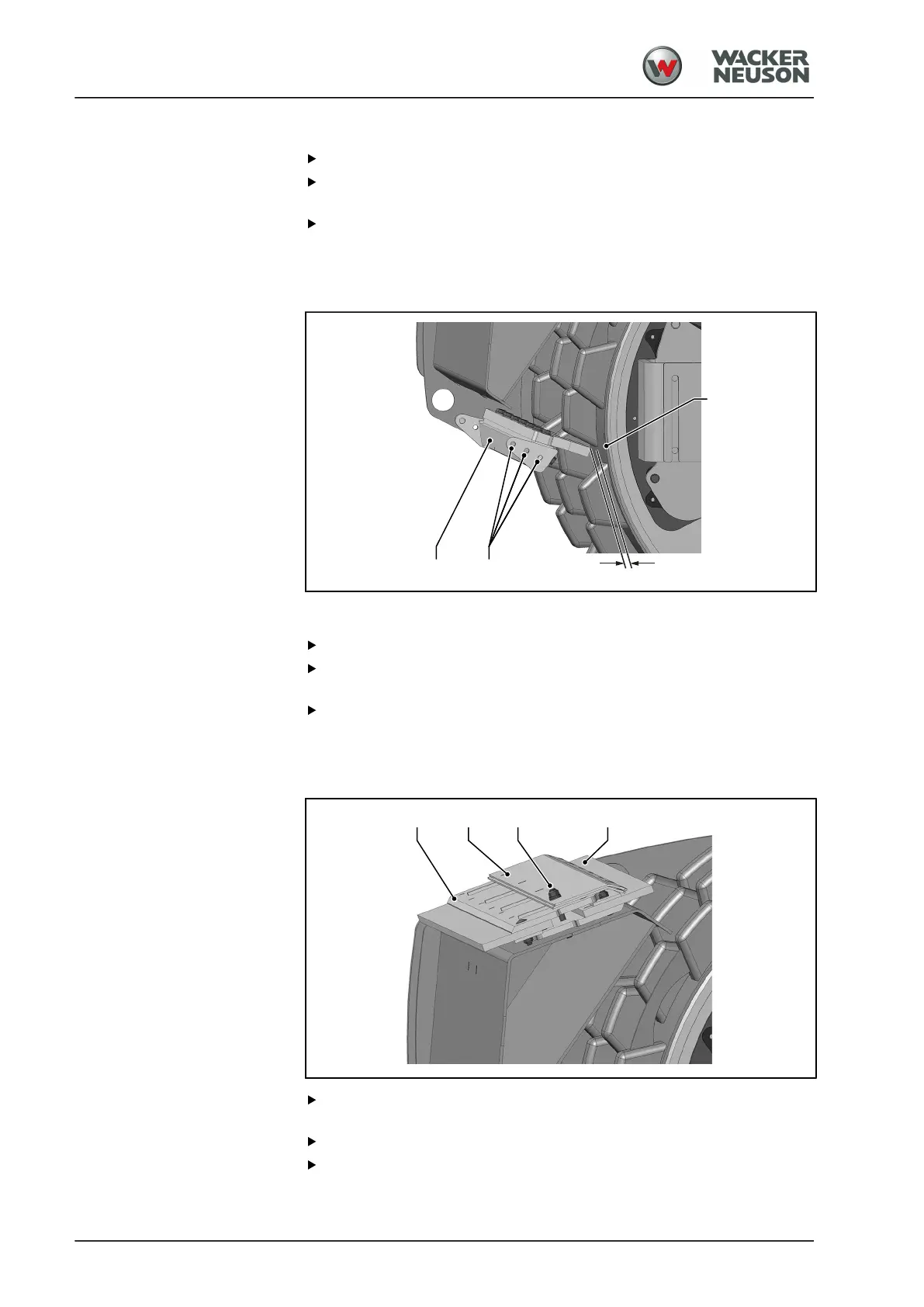

Padfoot shells
210
BA RC50_RC70 en 00
Padfoot drum clearance – 15 mm
Loosen the hexagon screw [1].
Create the clearance between the drum [3] and the
scraper bracket [2].
Tighten the hexagon screw [1].
Perform this work on the front and rear scrapers.
Adjusting the padfoot drum scrapers – method 2
12
3
Padfoot drum clearance – 15 mm
Loosen the hexagon screw [1].
Create the clearance between the drum [3] and the
scraper bracket [2].
Tighten the hexagon screw [1].
Perform this work on the front and rear scrapers.
Stowing away the smooth drum scraper
13
2
1
Place both scrapers [1] for the smooth drum on the front crossbeam
facing opposite directions.
Place both guard plates [2] on the scrapers [1].
Screw the nut [3] onto the stud and tighten it.
