Operation
Adjusting the driver's seat
72
BA RC50_RC70 en 00

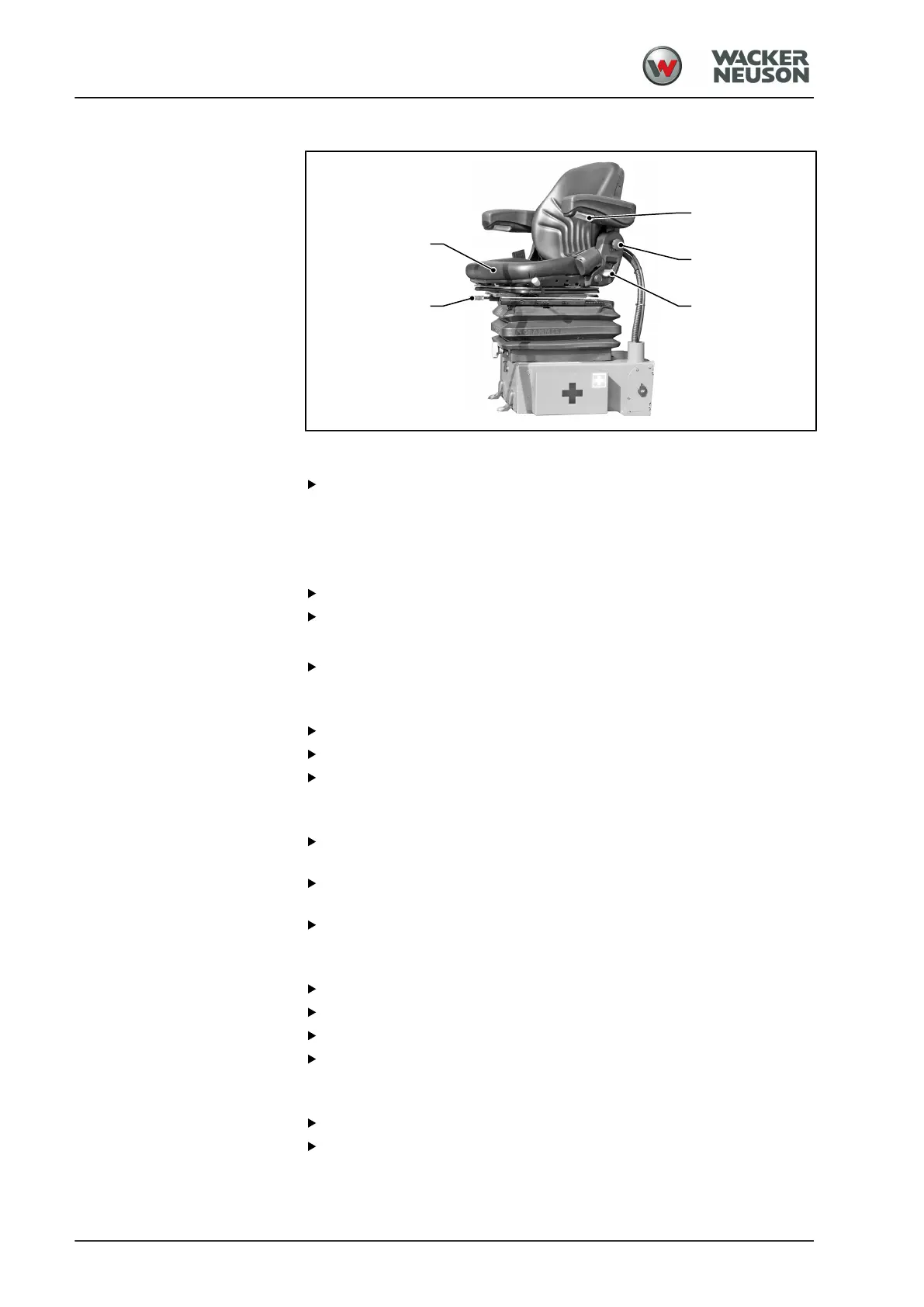

Driver's seat
Raising the driver's seat
Raise the driver's seat [1] with both hands until the required height is
set.
a
The driver's seat [1] latches in place every 30 mm.
Lowering the driver’s seat
First raise the driver's seat [1] as far as it will go with both hands.
Then fully lower the driver's seat [1] with both hands.
a
The driver's seat goes down to its lowest position.
Set the height of the driver's seat accordingly from the lowest setting.
Seat adjustment forward/backward
Lift the lever [3].
Slide the seat forward or backward to reach the desired position.
Release the lever [3] and let the seat pedestal snap in place.
Setting the slope of the backrest
Tilting the backrest forwards: Lift the lever [5] and tilt the backrest
forwards.
Tilting the backrest backwards: Lift the lever [5] and tilt the backrest
backwards.
Release lever [5].
Setting armrest height
Unscrew clamping screw [4].
Raise the armrest Pull the armrest up the guideway.
Lower the armrest: Push the armrest down the guideway.
Tighten clamping screw [4] again.
Adjusting the inclination of the armrest
To raise the armrest: Turn the hand wheel [2] clockwise.
To lower the armrest: Turn the hand wheel [2] anticlockwise.
