WAGNER EPG-Sprint X Operating Manual

30
EPG-SPRINT X
P_01114
I
O
OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371

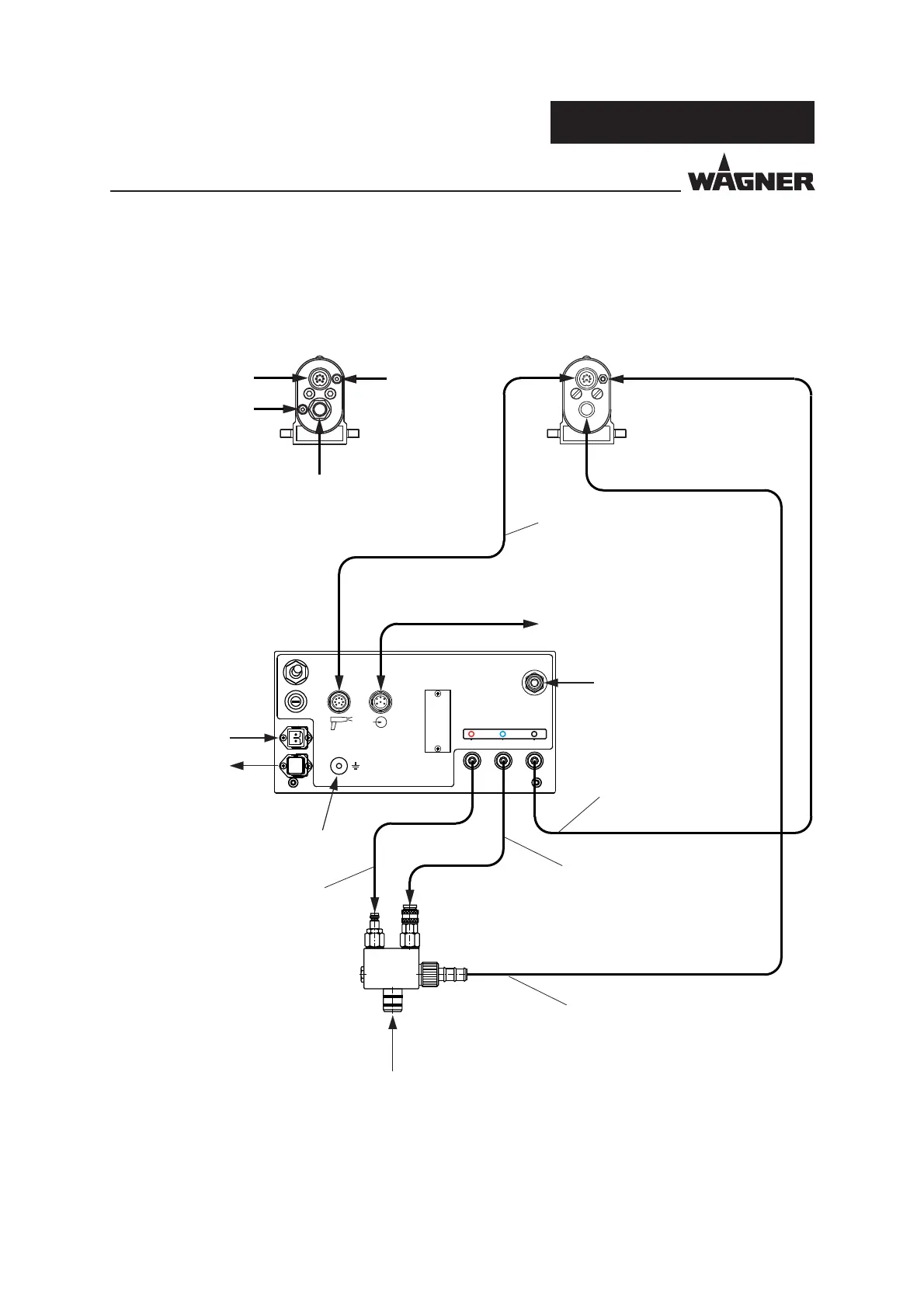

6.5 CONNECTING THE AUTOMATIC GUN
Tribo spray gun* Corona spray gun
Mains input terminal
Grounding cable to the signal ground
e.g., from the powder tank
Compressed air main supply
(0.6-0.8 MPa; 6-8 bar; 87-116 psi)
Hose diameter:
8 mm; 0.315 inches
Powder injector
Dosing air, blue
Feed air, red
Powder feed, transparent
Atomizing or Tribo air,
transparent
Electrical connection cable
EPG-SPRINT X
Mains output to
next control unit
Electrical connection
Tribo air
Atomizing air
Powder hose connection
To the CCM Prima
* A Y distributor (Order No. 9990149) is needed to divide the di erent types of air.
